9007X2

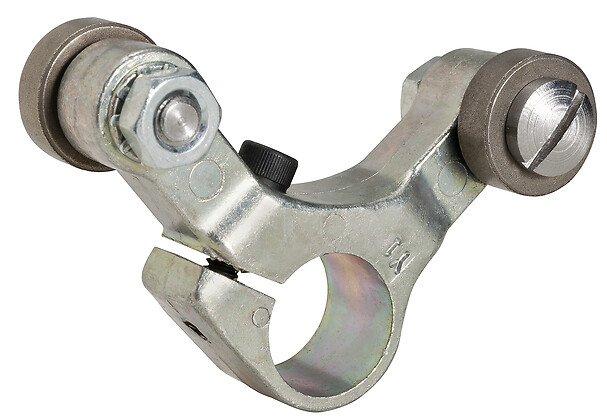

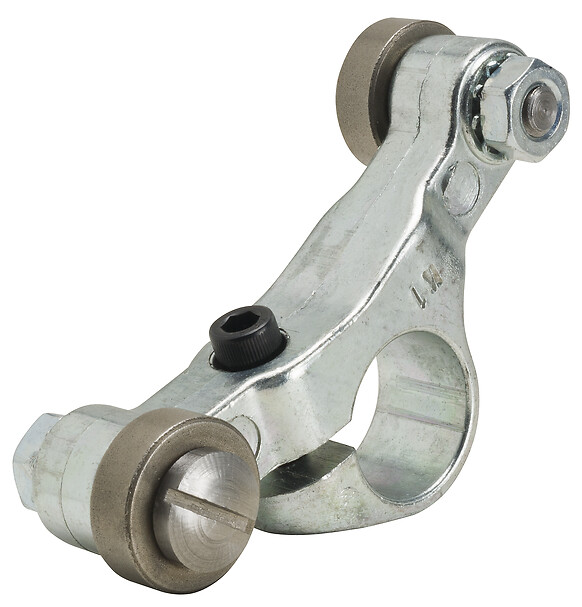

Limit switch lever 9007C, T+FT arm, option version

arrow

COMMERCIALISED

Download pdf datasheet Download 3d cad file Find a distributor

Expand all

Datasheet

Range of product
9007
Series name
Severe duty
Product or component type
Limit switch lever
Device short name
9007T/FT
Movement of operating head
Rotary
Type of operator
Cast zinc stay put 90° forked arm with rollers length: 1.5-1.5 in - offset: - -
Type of roller
2 steel outside roller diameter: 1 in - width: 0.25 in
Type of approach
Lateral approach
Positive opening
Without
Switch actuation
By specific cam
Environmental characteristic
Standard environment
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
3 CENTIMETER
Package 1 width
5 CENTIMETER
Package 1 length
8 CENTIMETER
Package 1 weight
0.0454 KILOGRAM
Unit type of package 2
S01
Number of units in package 2
50
Package 2 height
15 CENTIMETER
Package 2 width
15 CENTIMETER
Package 2 length
40 CENTIMETER
Package 2 weight
7.925 KILOGRAM
Unit type of package 3
CAR
Number of units in package 3
1
Package 3 height
8 CENTIMETER
Package 3 width
3 CENTIMETER
Package 3 length
3 CENTIMETER
Package 3 weight
0.154 KILOGRAM
Indivisible sale quantity
1
