Home Products 9007Z2

9007Z2

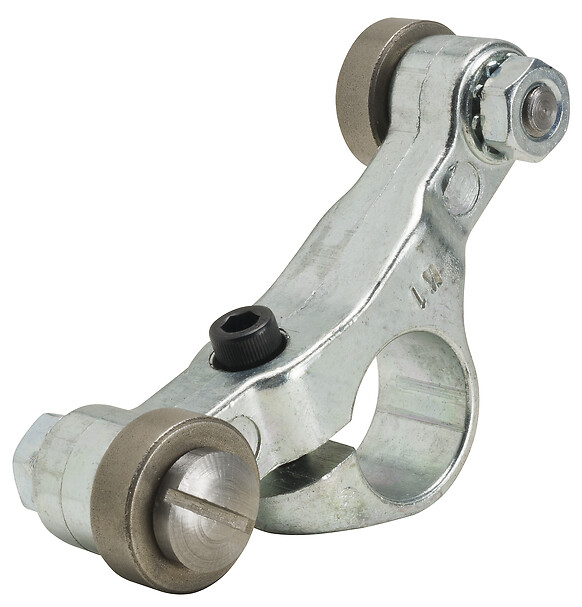

Limit switch lever 9007C, zinc, for 9007T/FT, 90° fork, LH opposing steel rollers

arrow

COMMERCIALISED

Download pdf datasheet Download 3d cad file Find a distributor

Expand all

Datasheet

Range of product
9007
Series name
Severe duty
Product or component type
Limit switch lever
Device short name
9007T/FT
Movement of operating head
Rotary
Type of operator
Cast zinc stay put 90° forked arm with rollers length: 1.5-1.5 in - offset: - -
Type of roller
2 steel LH opposite side roller diameter: 1 in - width: 0.25 in
Type of approach
Lateral approach
Positive opening
Without
Switch actuation
By specific cam
Environmental characteristic
Standard environment
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
6.452 CENTIMETER
Package 1 width
2.54 CENTIMETER
Package 1 length
16.387 CENTIMETER
Package 1 weight
45.359 GRAM
Indivisible sale quantity
1

Expand all

Documents & Downloads

Document name
Date
Size
Catalogue for limit switches, Range 9007 (pdf)

2024-10-31

18760251

Document name
Date
Size
NEMA Square D 9007 Limit Switches, 9007 T/FT Severe Duty 59mm Metal Body, , 9007T/FT 90 deg fork 1.50" lever, 1.00" dia. X 0.25" wide stl rollers, LH offset - 3D CAD (dxf)

2024-07-18T00:00:00.000Z

19271

NEMA Square D 9007 Limit Switches, 9007 T/FT Severe Duty 59mm Metal Body, , 9007T/FT 90 deg fork 1.50" lever, 1.00" dia. X 0.25" wide stl rollers, LH offset - 3D CAD (dxf)

2024-07-18T00:00:00.000Z

19311

NEMA Square D 9007 Limit Switches, 9007 T/FT Severe Duty 59mm Metal Body, , 9007T/FT 90 deg fork 1.50" lever, 1.00" dia. X 0.25" wide stl rollers, LH offset - 3D CAD (stp)

2024-07-18T00:00:00.000Z

204505

NEMA Square D 9007 Limit Switches, 9007 T/FT Severe Duty 59mm Metal Body, , 9007T/FT 90 deg fork 1.50" lever, 1.00" dia. X 0.25" wide stl rollers, LH offset - 3D CAD (dxf)

2024-07-18T00:00:00.000Z

20663

NEMA Square D 9007 Limit Switches, 9007 T/FT Severe Duty 59mm Metal Body, , 9007T/FT 90 deg fork 1.50" lever, 1.00" dia. X 0.25" wide stl rollers, LH offset - 3D CAD (dwg)

2024-07-18T00:00:00.000Z

20666

NEMA Square D 9007 Limit Switches, 9007 T/FT Severe Duty 59mm Metal Body, , 9007T/FT 90 deg fork 1.50" lever, 1.00" dia. X 0.25" wide stl rollers, LH offset - 3D CAD (dwg)

2024-07-18T00:00:00.000Z

20824

NEMA Square D 9007 Limit Switches, 9007 T/FT Severe Duty 59mm Metal Body, , 9007T/FT 90 deg fork 1.50" lever, 1.00" dia. X 0.25" wide stl rollers, LH offset - 3D CAD (dwg)

2024-07-18T00:00:00.000Z

20891

NEMA Square D 9007 Limit Switches, 9007 T/FT Severe Duty 59mm Metal Body, , 9007T/FT 90 deg fork 1.50" lever, 1.00" dia. X 0.25" wide stl rollers, LH offset - 3D CAD (dwg)

2024-07-18T00:00:00.000Z

21526

NEMA Square D 9007 Limit Switches, 9007 T/FT Severe Duty 59mm Metal Body, , 9007T/FT 90 deg fork 1.50" lever, 1.00" dia. X 0.25" wide stl rollers, LH offset - 3D CAD (dwg)

2024-07-18T00:00:00.000Z

22648

NEMA Square D 9007 Limit Switches, 9007 T/FT Severe Duty 59mm Metal Body, , 9007T/FT 90 deg fork 1.50" lever, 1.00" dia. X 0.25" wide stl rollers, LH offset - 3D CAD (dwg)

2024-07-18T00:00:00.000Z

23130

NEMA Square D 9007 Limit Switches, 9007 T/FT Severe Duty 59mm Metal Body, , 9007T/FT 90 deg fork 1.50" lever, 1.00" dia. X 0.25" wide stl rollers, LH offset - 3D CAD (dxf)

2024-07-18T00:00:00.000Z

25723

NEMA Square D 9007 Limit Switches, 9007 T/FT Severe Duty 59mm Metal Body, , 9007T/FT 90 deg fork 1.50" lever, 1.00" dia. X 0.25" wide stl rollers, LH offset - 3D CAD (dxf)

2024-07-18T00:00:00.000Z

26917

NEMA Square D 9007 Limit Switches, 9007 T/FT Severe Duty 59mm Metal Body, , 9007T/FT 90 deg fork 1.50" lever, 1.00" dia. X 0.25" wide stl rollers, LH offset - 3D CAD (dxf)

2024-07-18T00:00:00.000Z

31501

NEMA Square D 9007 Limit Switches, 9007 T/FT Severe Duty 59mm Metal Body, , 9007T/FT 90 deg fork 1.50" lever, 1.00" dia. X 0.25" wide stl rollers, LH offset - 3D CAD (pdf)

2024-07-18

33027

NEMA Square D 9007 Limit Switches, 9007 T/FT Severe Duty 59mm Metal Body, , 9007T/FT 90 deg fork 1.50" lever, 1.00" dia. X 0.25" wide stl rollers, LH offset - 3D CAD (dwg)

2024-07-18T00:00:00.000Z

34777

NEMA Square D 9007 Limit Switches, 9007 T/FT Severe Duty 59mm Metal Body, , 9007T/FT 90 deg fork 1.50" lever, 1.00" dia. X 0.25" wide stl rollers, LH offset - 3D CAD (dxf)

2024-07-18T00:00:00.000Z

68770

Document name
Date
Size
TESEDEC0000EN_PFAS_Global_Declaration_for_9007Z2 (pdf)

2026-08-19

276871

TESEDEC0000EN_REACh_Declaration_for_9007Z2 (pdf)

2026-04-14

109484

TESEDEC0000EN_RoHS_Declaration_for_9007Z2 (pdf)

2026-04-13

108761
