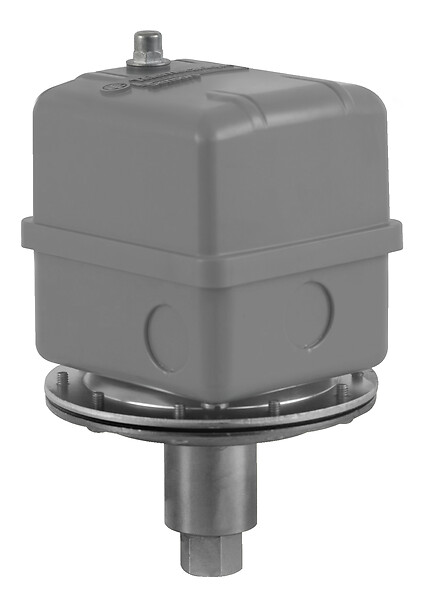

9016GAW1
Electromechanical vacuum switch, 9016G, adjustable scale, 2 thresholds, Set 0 to 28.3 InHg
Commercialized
Expand all
Datasheet
Range of produc
9016G
Product or component type
Electromechanical vacuum switch
Device application
Sensitive control application
Device short name
9016G
Electrical circuit type
Control circuit
Factory modification
-
Vacuum switch type of operation
Regulation between two thresholds
Scale type
Adjustable differential
Value of setting
-
Vacuum sensor size
28.7 inHg
Range on decreasing vacuum
0…28.7 inHg
Approx adjustable differential at mid range
1.3…7.4 inHg
Maximum pressure
100 psi
Maximum permissible pressure - per cycle
689.48 kPa
Local display
Without
Fluid connection type
0.25 inch 18 NPTF conforming to UL 508
Electrical connection
Screw-clamp terminals AWG 22...AWG 12
Cable entry
0.5 inch NPT conduit entrance
Terminal block type
4 screw terminals
Pressure actuator
Diaphragm nitrile (Buna-N)
Controlled fluid
Air (-40…121 °C)
Water (-40…121 °C)
Hydraulic oil (-40…121 °C)
Gas (-40…121 °C)
Water (-40…121 °C)
Hydraulic oil (-40…121 °C)
Gas (-40…121 °C)
Materials in contact with fluid
Zinc plated steel
Nitrile (Buna-N)
3M Scotch-Grip 847 rubber and gasket adhesive
Nitrile (Buna-N)
3M Scotch-Grip 847 rubber and gasket adhesive
Enclosure material
Die cast aluminium alloy 380
Operating position
Any position
Maximum operating rate
120 cyc/mn
Repeat accuracy
0.4 %
[In] rated current
3 A 240 V AC A600 conforming to NEMA rating designation
6 A 120 V AC A600 conforming to NEMA rating designation
0.27 A 250 V DC R300 conforming to NEMA rating designation
0.22 A 125 V DC R300 conforming to NEMA rating designation
6 A 120 V AC A600 conforming to NEMA rating designation
0.27 A 250 V DC R300 conforming to NEMA rating designation
0.22 A 125 V DC R300 conforming to NEMA rating designation
Local signalling
Without:
Contacts type and composition
NC-NO, SPDT, Form Z, snap action, silver nickel contacts
Short-circuit protection
10 A cartridge overload and short-circuit protection, type gL
Mechanical durability
5000000 cycles
Setting
Internal
Net weight
2.09 kg
Height
163.83 mm
Depth
115.82 mm
Width
115.82 mm
Standards
UL 508
Product certifications
UL listed
CSA
CSA
Protective treatment
None
Ambient air temperature for operation
-12…85 °C
Ambient air temperature for storage
-12…85 °C
Vibration resistance
2 gn conforming to IEC 68-2-6 (f = 40…150 Hz)
Shock resistance
50 gn conforming to IEC 58-2-27
NEMA degree of protection
NEMA 4/4X/13 conforming to UL 698
Unit Type of Package 1
PCE
Number of Units in Package 1
1
Package 1 Height
15.24 cm
Package 1 Width
19.05 cm
Package 1 Length
19.304 cm
Package 1 Weight
1.982 kg
Sustainable offer status
Green Premium product
REACh Regulation
EU RoHS Directive
Pro-active compliance (Product out of EU RoHS legal scope)
Mercury free
Yes
RoHS exemption information
Environmental Disclosure
Circularity Profile
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Warranty
18 months
Expand all
Documents & Downloads
Document name
Date
Size
11/22/2023
13.4 MB
Document name
Date
Size
11/23/2023
182.8 kB
Document name
Date
Size
11/22/2023
195.3 kB
11/22/2023
195.3 kB
Document name
Date
Size
11/23/2023
297.3 kB
Expand all
Related products & accessoires

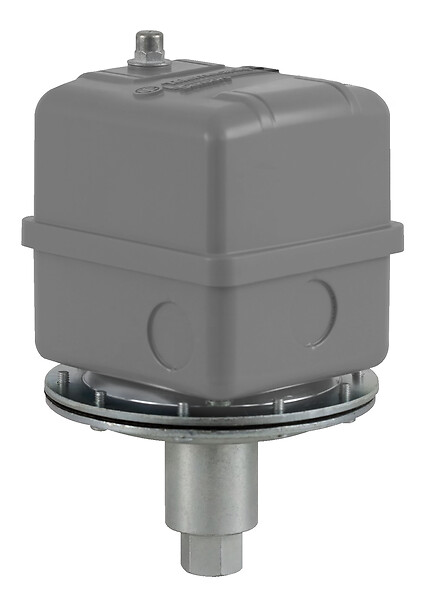

9016GVG1J09
