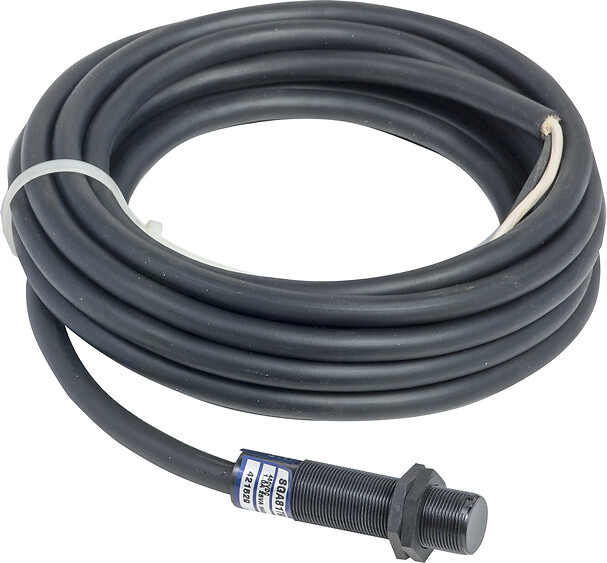

SG08003
Coded magnetic system, proximity sensor, actuated sensor
Commercialized
Expand all
Datasheet
Product or component type
Coded magnetic system
Material
Plastic
Electrical connection
Pre-cabled
[Ue] rated operational voltage
24 V DC (- 20...10 %)
Protection type
Overload and short-circuit protection
Ambient air temperature for operation
-25…70 °C
Ambient air temperature for storage
-40…85 °C
Unit Type of Package 1
PCE
Number of Units in Package 1
1
Package 1 Height
4.318 cm
Package 1 Width
7.62 cm
Package 1 Length
13.716 cm
Package 1 Weight
158.757 g
REACh Regulation
EU RoHS Directive
Not applicable, out of EU RoHS legal scope
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
