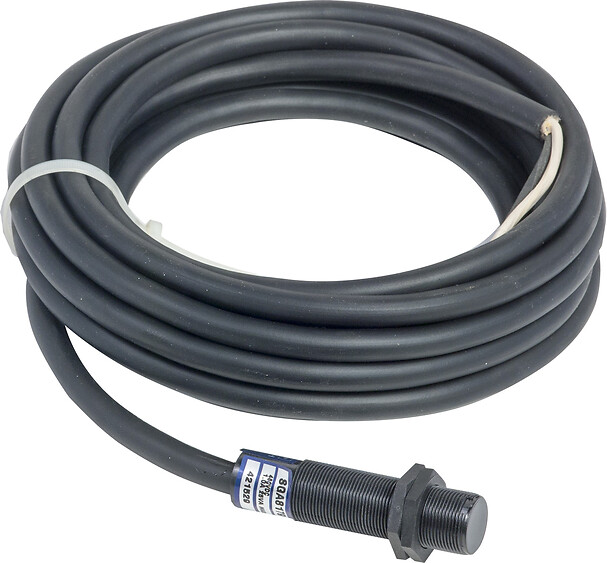

SGA8179L05
Coded magnetic system, MAGNET SWITCH 480 V dc, 1.0 Amp, 25 VA, Cable l = 5 m
Commercialized
Expand all
Datasheet
Product or component type
Coded magnetic system
Contacts type and composition
1 NO
Material
Plastic
Electrical connection
Pre-cabled
Cable length
5 m
[Ue] rated operational voltage
480 V DC
Protection type
Overload and short-circuit protection
Breaking capacity
25 VA
Ambient air temperature for operation
-25…70 °C
Ambient air temperature for storage
-40…85 °C
Unit Type of Package 1
PCE
Number of Units in Package 1
1
Package 1 Height
5.08 cm
Package 1 Width
18.542 cm
Package 1 Length
18.542 cm
Package 1 Weight
684.925 g
REACh Regulation
EU RoHS Directive
Not applicable, out of EU RoHS legal scope
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Expand all
Documents & Downloads
Document name
Date
Size
11/22/2023
195.3 kB
11/22/2023
195.3 kB
Expand all
Related products & accessoires

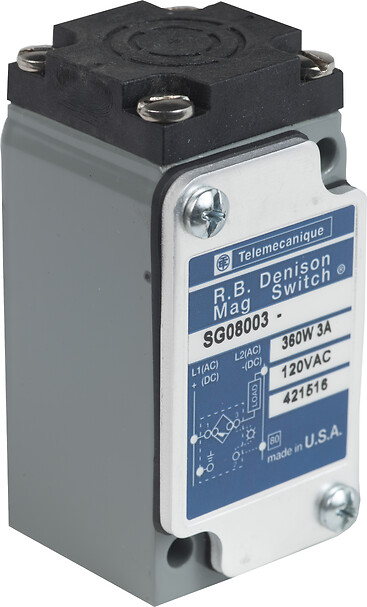

SG08003
Coded magnetic system, proximity sensor, actuated sensor

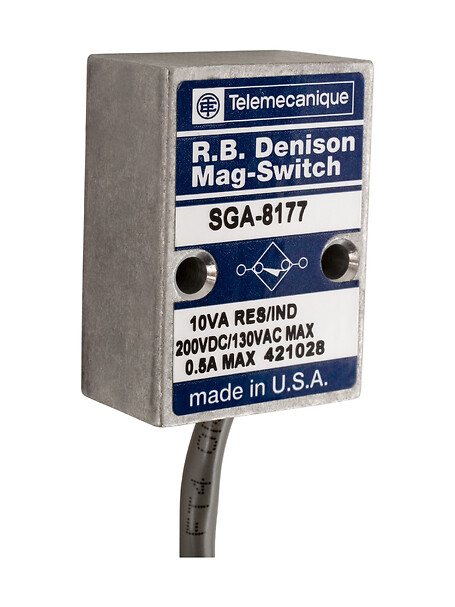

SGA8177L05
