Home Products XCE119C

XCE119C

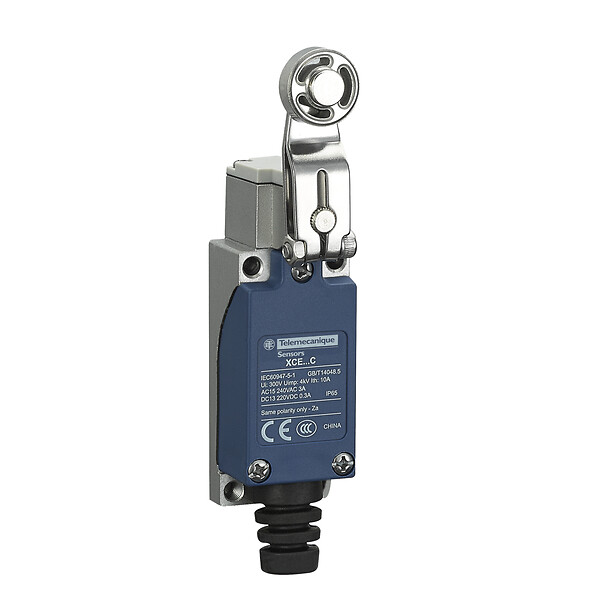

Steel roller lever

arrow

Commercialised

Download pdf datasheet Download 3d cad file Find a distributor

Expand all

Datasheet

Range of product
OsiSense XC
Series name
Basic
Product or component type
Limit switch
Product specific application
Medium duty
Device short name
XCE
Body type
Fixed
Head type
Rotary head
Material
Plastic and metal
Fixing mode
By the body
Movement of operating head
Rotary
Type of operator
Spring return roller lever steel
Switch actuation
By 30° cam
Type of approach
Lateral approach, 2 directions
Electrical connection
Screw-clamp terminals, clamping capacity: 1 x 1.5 mm²
Cable entry
1 flexible rubber cable gland, cable outer diameter: 6-9 mm
Contact operation
Snap action
Positive opening
Without
Contacts insulation form
Za
Operating rate
120 CYCLE_PER_MINUTE
Contact code designation
A300, AC (Ue = 240 V), Ie = 3 A, Ithe = 10 A conforming to IEC 60947-5-1, R300, DC (Ue = 220 V), Ie = 0.3 A conforming to IEC 60947-5-1
Resistance across terminals
25 MOhm
Terminals description ISO n°1
(3-4-1-2)OF
Shock resistance
30 gn for 11 ms conforming to IEC 60068-2-27
Vibration resistance
+/- 3 mm (f= 10-55 Hz) conforming to IEC 60068-2-6
IP degree of protection
IP65 conforming to IEC 60529
Electrical shock protection class
Class I conforming to IEC 60947-5-1
Marking
CCC
CE
Standards
GB 14048.5
IEC 60947-5-1
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
3 CENTIMETER
Package 1 width
5 CENTIMETER
Package 1 length
13.5 CENTIMETER
Package 1 weight
179 GRAM
Unit type of package 2
S02
Number of units in package 2
50
Package 2 height
15 CENTIMETER
Package 2 width
30 CENTIMETER
Package 2 length
40 CENTIMETER
Package 2 weight
9.194 KILOGRAM
Unit type of package 3
P06
Number of units in package 3
800
Package 3 height
75 CENTIMETER
Package 3 width
80 CENTIMETER
Package 3 length
60 CENTIMETER
Package 3 weight
155.104 KILOGRAM
Indivisible sale quantity
1
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Expand all

Technical Drawings

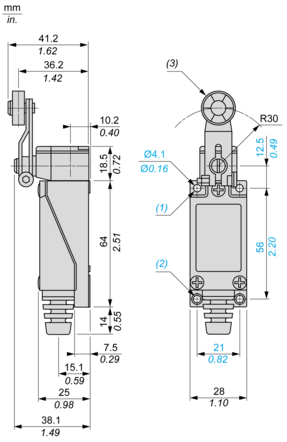

Dimensions

epds

Connection and Schema

Wiring Diagram

epds

Technical Description

Type of Operator and Functional Diagram, Travel Distance

epds

Mounting with Roller Lever

Recommended Mounting

epds

Mounting with Roller Lever

Mounting to be Avoided

epds
