XCE181C

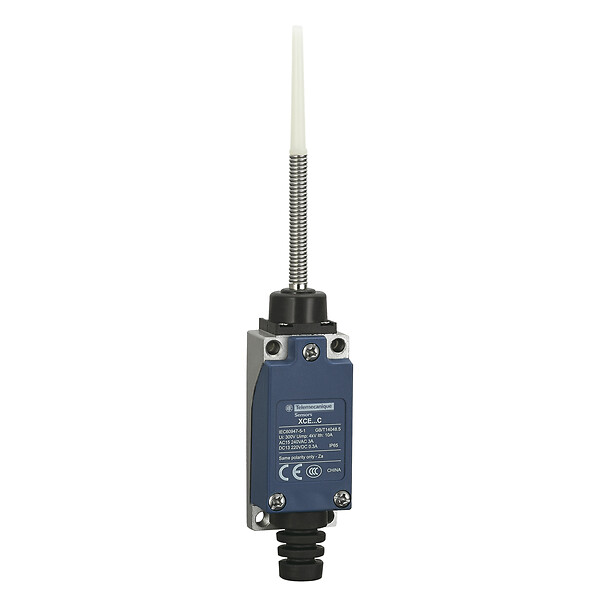

Spring rod with thermoplastic end
Commercialised
Expand all
Datasheet
Range of product
OsiSense XC
Series name
Basic
Product or component type
Limit switch
Product specific application
Medium duty
Device short name
XCE
Body type
Fixed
Head type
Multi-directional head
Material
Plastic and metal
Fixing mode
By the body
Movement of operating head
Multi-directional
Type of operator
Cat's whisker plastic and metal
Switch actuation
By any moving part
Type of approach
Multi-directional approach
Electrical connection
Screw-clamp terminals, clamping capacity: 1 x 1.5 mm²
Cable entry
1 flexible rubber cable gland, cable outer diameter: 6-9 mm
Contact operation
Snap action
Positive opening
Without
Contacts insulation form
Za
Operating rate
120 CYCLE_PER_MINUTE
Contact code designation
A300, AC (Ue = 240 V), Ie = 3 A, Ithe = 10 A conforming to IEC 60947-5-1, R300, DC (Ue = 220 V), Ie = 0.3 A conforming to IEC 60947-5-1
Resistance across terminals
25 MOhm
Terminals description ISO n°1
(3-4-1-2)OF
Shock resistance
30 gn for 11 ms conforming to IEC 60068-2-27
Vibration resistance
+/- 3 mm (f= 10-55 Hz) conforming to IEC 60068-2-6
IP degree of protection
IP65 conforming to IEC 60529
Electrical shock protection class
Class I conforming to IEC 60947-5-1
Marking
CCC
CE
CE
Standards
GB 14048.5
IEC 60947-5-1
IEC 60947-5-1
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
3 CENTIMETER
Package 1 width
5 CENTIMETER
Package 1 length
17.5 CENTIMETER
Package 1 weight
133 GRAM
Unit type of package 2
S02
Number of units in package 2
40
Package 2 height
15 CENTIMETER
Package 2 width
30 CENTIMETER
Package 2 length
40 CENTIMETER
Package 2 weight
5.569 KILOGRAM
Unit type of package 3
P06
Number of units in package 3
640
Package 3 height
75 CENTIMETER
Package 3 width
80 CENTIMETER
Package 3 length
60 CENTIMETER
Package 3 weight
97.104 KILOGRAM
Indivisible sale quantity
1
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Expand all
Technical Drawings

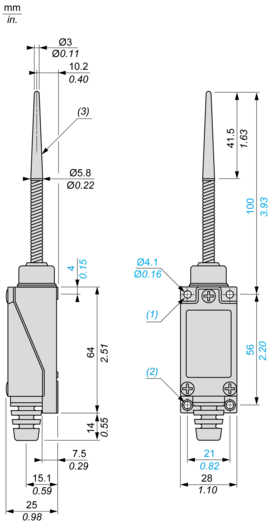

Dimensions
Connection and Schema
Wiring Diagram
Technical Description
Type of Operator and Functional Diagram, Travel Distance
Expand all
Documents & Downloads
Document name
Date
Size
2024-02-07
3375052
Document name
Date
Size
7/18/2024
1596
7/18/2024
1596
7/18/2024
1596
7/18/2024
1596
7/18/2024
1596
7/18/2024
1596
7/18/2024
1596
7/18/2024
1596
7/18/2024
1596
7/18/2024
1596
7/18/2024
1596
7/18/2024
1596
7/18/2024
1596
7/18/2024
1596
7/18/2024
1596
7/18/2024
1596
Document name
Date
Size
2025-02-28
256062
2025-05-19
252197
Document name
Date
Size
2024-01-17
564408
2024-02-27
170504
Expand all
Related products & accessories
XCE102C

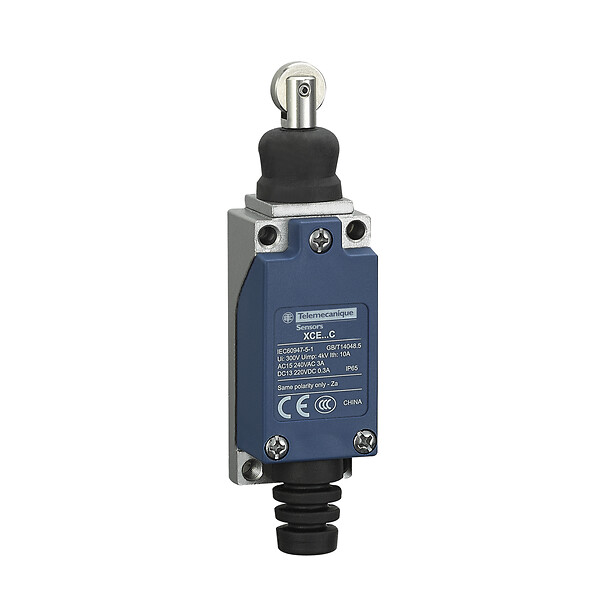

Steel roller plunger, horizontal actuation

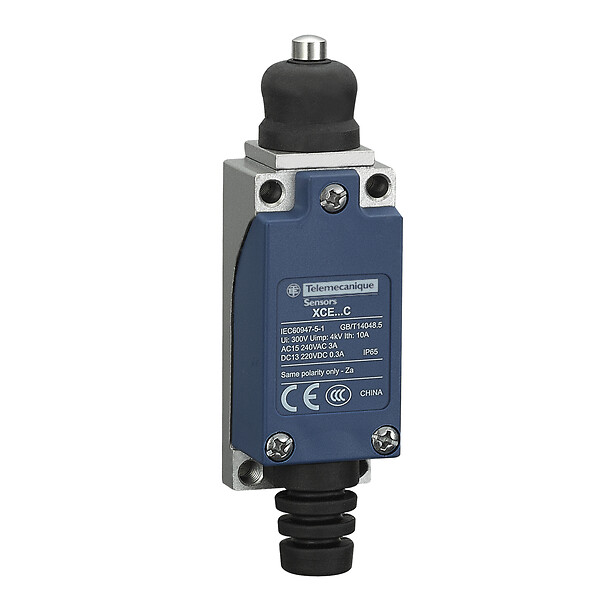

XCE110C
Metal end plunger
XCE118C

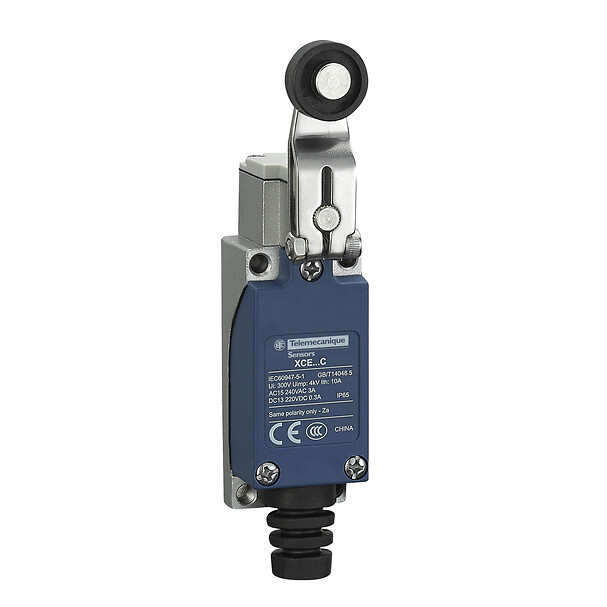

Thermoplastic roller lever
XCE119C

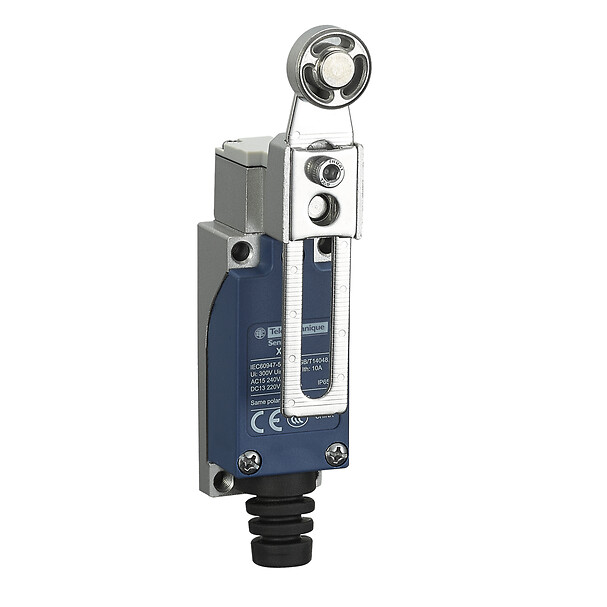

Steel roller lever

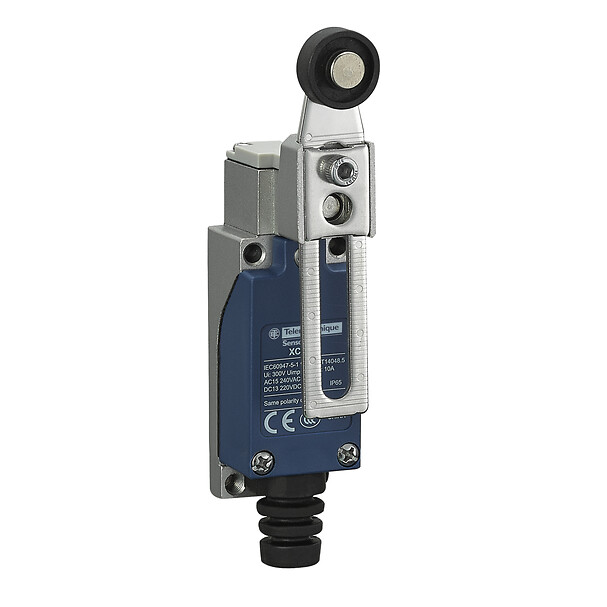

XCE145C
Variable length thermoplastic roller lever

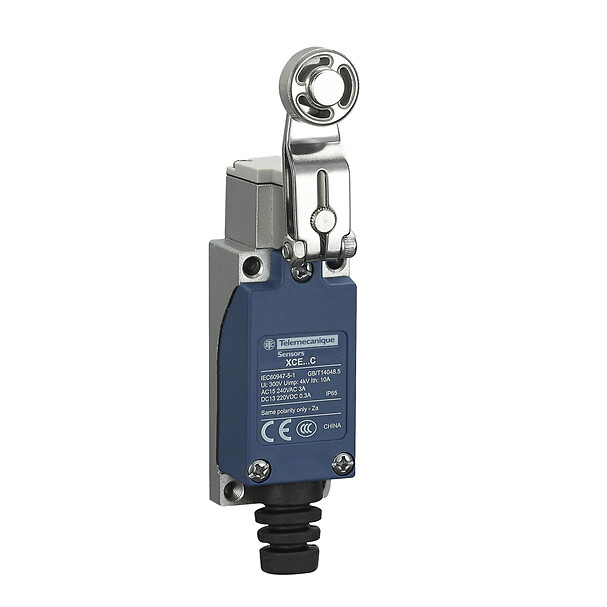

XCE146C
Variable length steel roller lever
XCE154C

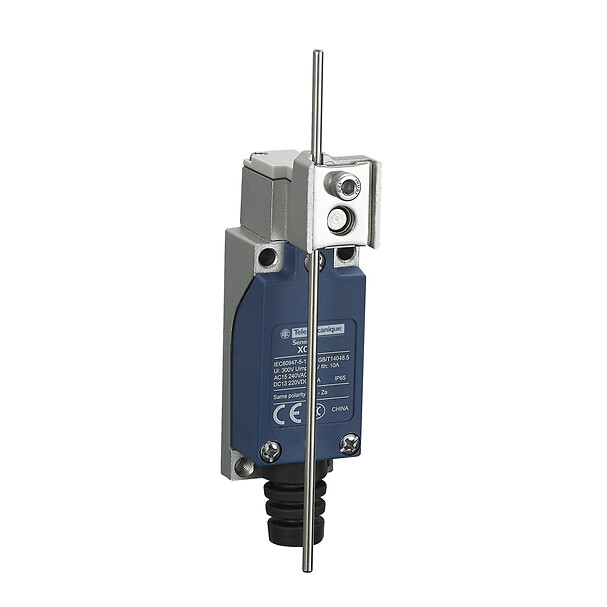

Round rod lever, steel, φ3 mm
