XCKZ015

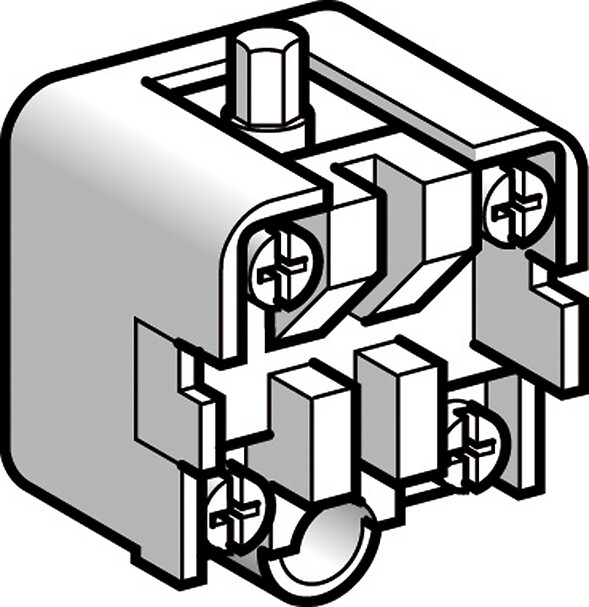

Limit switch accessory, contact block XCKZ, XC Standard, 1 C/O snap action, silver plated
COMMERCIALISED
Expand all
Datasheet
Range of product
Telemecanique Limit switches XC Standard
Series name
Standard format
Product or component type
Limit switch contact block
Device short name
XCKZ
ETIM classification
ETIM 9 - EC000041 - Auxiliary contact block
Number of poles
1
Product compatibility
XC2J
Indivisible sale quantity
1
Minimum actuation speed
0.01 mm/s
Contact code designation
A300, AC-15 (Ue = 240 V), Ie = 3 A conforming to IEC 60947-5-1 appendix A, Q300, DC-13 (Ue = 250 V), Ie = 0.27 A conforming to IEC 60947-5-1 appendix A
Electrical durability
5000000 cycles, DC-13 120 V, 4 W, operating rate <60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-1 appendix C, 5000000 cycles, DC-13 24 V, 10 W, operating rate <60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-1 appendix C, 5000000 cycles, DC-13 48 V, 7 W, operating rate <60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-1 appendix C
Electrical connection
Screw-clamp terminals, clamping capacity: 1 x 0.5...2 x 2.5 mm²
Positive opening
Without
Contacts insulation form
Za
Contacts type and composition
1 C/O
Contacts material
Silver plated contacts
Contact operation
Snap action
[Ui] rated insulation voltage
500 V conforming to IEC 60947-5-1, 300 V conforming to CSA C22.2 No 14
Resistance across terminals
25 mOhm conforming to IEC 60255-7 category 3
Short-circuit protection
10 A cartridge fuse, type gG
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Warranty
18 months
Country of origin
FR (France)
Unit type of package 1
PCE
Number of units in package 1
1
New Package 1 GTIN-13
3666916041468
Package 1 height
3.5 cm
Package 1 width
4.5 cm
Package 1 length
6 cm
Package 1 weight
0.05 kg
Unit type of package 2
S01
Number of units in package 2
64
New Package 2 GTIN 14
13666916041465
Package 2 height
15 cm
Package 2 width
15 cm
Package 2 length
40 cm
Package 2 weight
3.425 kg
Unit type of package 3
CAR
Number of units in package 3
1
New Package 3 GTIN 14
23666916041462
Package 3 height
3.5 cm
Package 3 width
6 cm
Package 3 length
4.5 cm
Package 3 weight
0.05 kg
