XC2JC10151

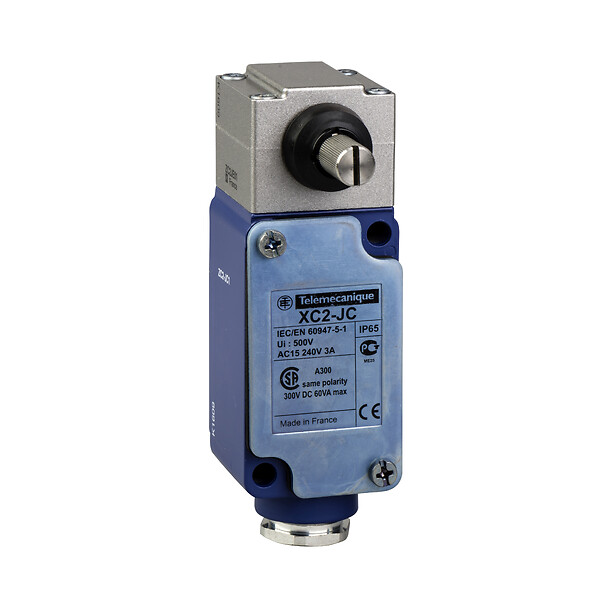

Limit switch XC2J, steel square rod lever, 1CO
COMMERCIALISED
Expand all
Datasheet
Range of product
OsiSense XC
Series name
Special format
Product or component type
Limit switch
Device short name
XC2J
Product specific application
For severe applications
ETIM classification
ETIM 9 - EC000030 - End switch
Body type
Fixed
Head type
Rotary head
Material
Metal
Fixing mode
By the body
Movement of operating head
Rotary
Type of operator
Square rod lever steel square rod 3 mm, L = 125 mm
Switch actuation
By any moving part
Type of approach
Lateral approach, 2 directions
Number of poles
1
Product certifications
CSA
DEMKO
NEMKO
DEMKO
NEMKO
Standards
CSA C22.2 No 14
IEC 60337-1
IEC 60947-5-1
UL 508
VDE 0660-200
IEC 60337-1
IEC 60947-5-1
UL 508
VDE 0660-200
Indivisible sale quantity
1
Mechanical durability
30000000 cycles
Minimum torque for tripping
0.2 N.m
Minimum actuation speed
0.001 m/mn
Maximum actuation speed
1.5 m/s
Cable entry
1 entry incorporating cable gland, cable outer diameter: 6-13.5 mm
Contact code designation
-
Electrical durability
5000000 cycles, DC-13, 120 V, 4 W, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C, 5000000 cycles, DC-13, 24 V, 10 W, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C, 5000000 cycles, DC-13, 48 V, 7 W, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C
Electrical connection
Screw-clamp terminals, clamping capacity: 1 x 0.5...2 x 2.5 mm²
Positive opening
Without
Contacts insulation form
Za
Contacts material
Silver plated contacts
Terminals description ISO n°1
(13-14-11-12)OF
Contact operation
Snap action
[Ui] rated insulation voltage
500 V conforming to IEC 60947-5-1, 500 V conforming to NF C 20-040 group C, 300 V conforming to CSA C22.2 No 14
Resistance across terminals
25 MOhm conforming to IEC 60255-7 category 3, 25 MOhm conforming to NF C 93-050 method A
Electrical shock protection class
Class I conforming to IEC 60536, class I conforming to NF C 20-030
Short-circuit protection
10 A cartridge fuse, type gG
Width
40 mm
Depth
65 mm
Product weight
0.605 kg
IK degree of protection
IK08
IP degree of protection
IP65 conforming to IEC 60529, IP657 conforming to IEC 60529
Ambient air temperature for operation
-25…70 °C
Ambient air temperature for storage
-40…70 °C
Shock resistance
25 gn for 18 ms conforming to IEC 60068-2-27
Vibration resistance
10 gn (f= 10-500 Hz) conforming to IEC 60068-2-6
Protective treatment
TC
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Warranty
18 months
Country of origin
FR (France)
Unit type of package 1
PCE
Number of units in package 1
1
New Package 1 GTIN-13
3666916058411
Package 1 height
7.2 cm
Package 1 width
4.6 cm
Package 1 length
14.5 cm
Package 1 weight
0.631 kg
Unit type of package 2
S01
Number of units in package 2
7
New Package 2 GTIN 14
13666916058418
Package 2 height
15 cm
Package 2 width
15 cm
Package 2 length
40 cm
Package 2 weight
4.646 kg
Unit type of package 3
S02
Number of units in package 3
20
New Package 3 GTIN 14
23666916058415
Package 3 height
15 cm
Package 3 width
30 cm
Package 3 length
40 cm
Expand all
Technical Drawings
Dimensions
- (1) Fixing from the rear: by 2 M5 screws. Depth of thread on switch: 10 mm.
- (2) Fixing from the front via 2 holes Ø 5.5.
- (3) 125 max.
- (4) 148 max.
- (5) 222 max.
Wiring Diagram
Single-pole CO Snap Action
Characteristics of Actuation
Switch Actuation by Any Moving Part
Functionnal Diagram
- (1) Closed
- (2) Open
- (3) Tripping
- (4) Resetting
