XCMD2101C12
Limit switch, Limit switches XC Standard, XCMD, with rotary head W/O operating lever, 1NC+1 NO, snap, M12
Commercialized
Expand all
Datasheet
Range of product
Telemecanique Limit switches XC Standard
Series name
Standard format
Product or component type
Limit switch
Device short name
XCMD
Sensor design
Miniature
Body type
Plug-in body
Head type
Rotary head
Material
Metal
Body material
Zamak
Head material
Zamak
Fixing mode
By the body
Movement of operating head
Rotary
Type of operator
Spring return without operating lever
Type of approach
Lateral approach, 2 directions
Number of poles
2
Contacts type and composition
1 NC + 1 NO
Contact operation
Snap action
Electrical connection
Male connector M12, 5 pins
Contacts insulation form
Zb
Positive opening
With
Maximum actuation speed
1.5 m/s
[Ie] rated operational current
0.22 A at 50 V, DC-13 conforming to EN/IEC 60947-5-1 appendix A
3 A at 50 V, AC-15 conforming to EN/IEC 60947-5-1 appendix A
3 A at 50 V, AC-15 conforming to EN/IEC 60947-5-1 appendix A
[Ithe] conventional enclosed thermal current
4 A
[Ui] rated insulation voltage
60 V (pollution degree 3) conforming to IEC 60947-5-1
Maximum resistance across terminals
25 mOhm conforming to IEC 60255-7 category 3
[Uimp] rated impulse withstand voltage
0.8 kV conforming to IEC 60664
0.8 kV conforming to IEC 60947-1
0.8 kV conforming to IEC 60947-1
Short-circuit protection
4 A cartridge fuse, type gG
Electrical durability
5000000 cycles, DC-13, 24 V, 3 W, operating rate <60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-1 appendix C
5000000 cycles, DC-13, 48 V, 2 W, operating rate <60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-1 appendix C
5000000 cycles, DC-13, 48 V, 2 W, operating rate <60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-1 appendix C
Mechanical durability
10000000 cycles
Width
30 mm
Height
50 mm
Depth
16 mm
Net weight
0.11 kg
Shock resistance
25 gn for 18 ms conforming to IEC 60068-2-27
Vibration resistance
5 gn (f= 10…500 Hz) conforming to IEC 60068-2-6
IP degree of protection
IP66 conforming to IEC 60529
IP67 conforming to IEC 60529
IP68 conforming to IEC 60529
IP67 conforming to IEC 60529
IP68 conforming to IEC 60529
IK degree of protection
IK06 conforming to EN 62262
Electrical shock protection class
Class I conforming to IEC 61140
Class I conforming to NF C 20-030
Class I conforming to NF C 20-030
Ambient air temperature for operation
-25…70 °C
Ambient air temperature for storage
-40…70 °C
Protective treatment
TC
Product certifications
CSA
UL
CCC
UL
CCC
Standards
CSA C22.2 No 14
EN/IEC 60947-5-1
UL 508
EN/IEC 60204-1
EN/IEC 60947-5-1
UL 508
EN/IEC 60204-1
Unit Type of Package 1
PCE
Number of Units in Package 1
1
Package 1 Height
3 cm
Package 1 Width
7 cm
Package 1 Length
5.3 cm
Package 1 Weight
117 g
Unit Type of Package 2
S02
Number of Units in Package 2
50
Package 2 Height
15 cm
Package 2 Width
30 cm
Package 2 Length
40 cm
Package 2 Weight
6.324 kg
Sustainable offer status
Green Premium product
EU RoHS Directive
Pro-active compliance (Product out of EU RoHS legal scope)
Mercury free
Yes
RoHS exemption information
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Warranty
18 months
Expand all
Technical Drawings
Dimensions
(1) 2 fixing holes Ø 4.2 mm, counterbored Ø 8 mm by 4 mm deep.
Mounting with Rotary Heads and Levers
Type of Cam
(1) Recommended
(2) To be avoided
Setting-up with Head ZCE01 and ZCE09
(1) Tightening torque (Min : 1) (Max : 1.5)
Wiring Diagram
5-pin, M12, 4A-60V
1 - 2 : NC
3 - 4 : NO
5 : Grounding
Characteristics of Actuation
Switch Actuation on End
Functional Diagram
(P) Positive opening point
(1) Closed
(2) Open
(3) Tripping
(4) Resetting
Expand all
Documents & Downloads
Document name
Date
Size
11/22/2023
87.0 kB
11/22/2023
154.3 kB
Document name
Date
Size
7/24/2024
65.0 MB
7/31/2024
59.9 MB
Document name
Date
Size
11/29/2023
645.5 kB
11/22/2023
195.3 kB
Expand all
Related products & accessoires
XCMZ06
Spacer for mounting, multi track limit switch XCM D
XCMZ07
Spacer for angular positioning of head with adjustable lever, for limit switch
ZCE05
Limit switch head, Limit switches XC Standard, ZCE, without lever spring return left or right actuation
ZCY17
Limit switch lever, Limit switches XC Standard, ZCY, steel ball bearing mounted roller

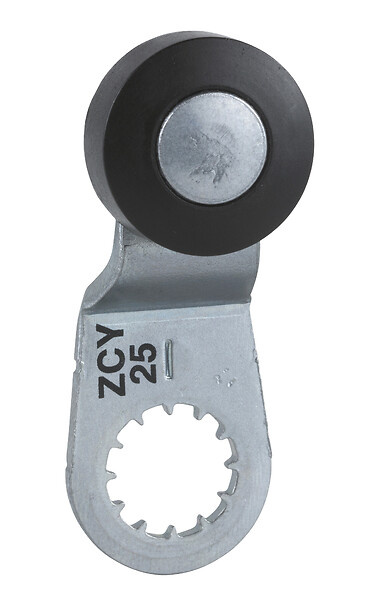

ZCY25
Limit switch lever, Limit switches XC Standard, ZCY, thermoplastic roller
ZCY26
Limit switch lever, Limit switches XC Standard, ZCY, steel roller
ZCY23
Limit switch lever, Limit switches XC Standard, ZCY, steel ball bearing mounted roller
ZCY18
Limit switch lever, Limit switches XC Standard, ZCY, thermoplastic roller
ZCY19
Limit switch lever, Limit switches XC Standard, ZCY, steel roller
ZCY12
Limit switch lever, Limit switches XC Standard, ZCY, steel ball bearing mounted roller

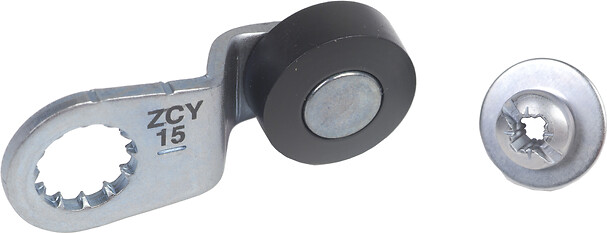

ZCY15
Limit switch lever, Limit switches XC Standard, ZCY, thermoplastic roller

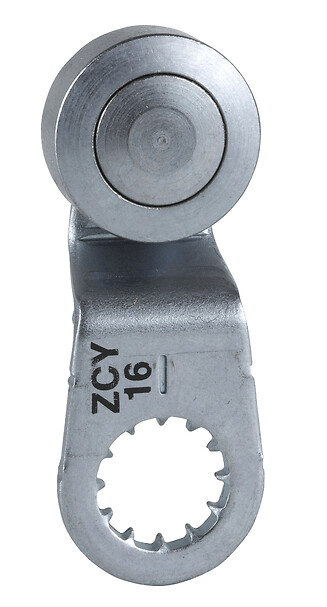

ZCY16
Limit switch lever, Limit switches XC Standard, ZCY, steel roller
ZCY44
Limit switch lever, Limit switches XC Standard, ZCY, thermoplastic pliable roller variable length
ZCY45
Limit switch lever, Limit switches XC Standard, ZCY, thermoplastic roller variable length
ZCY46
Limit switch lever, Limit switches XC Standard, ZCY, steel roller variable length
ZCY48
Limit switch lever, Limit switches XC Standard, ZCY, steel pliable roller variable length

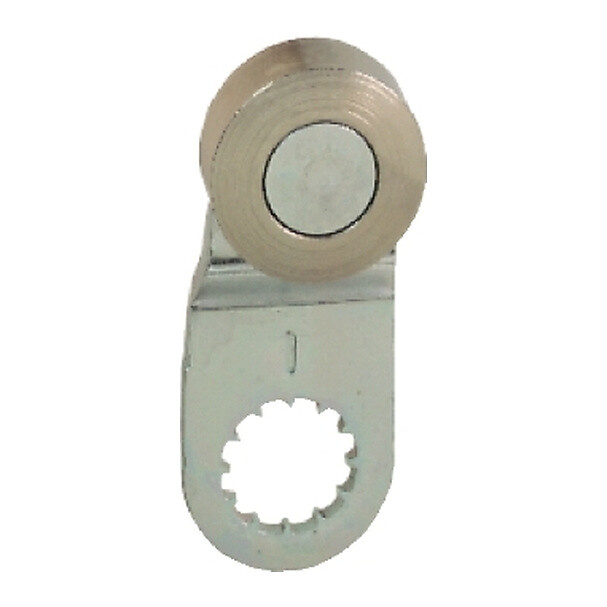

ZCY22
Limit switch lever, Limit switches XC Standard, ZCY, ceramic roller
ZCY81
Limit switch lever, Limit switches XC Standard, ZCY, spring with thermoplastic end
ZCY91
Limit switch lever, Limit switches XC Standard, ZCY, spring rod with metal end
ZCY53
Limit switch lever, Limit switches XC Standard, ZCY, steel round rod 3 mm, L = 125 mm

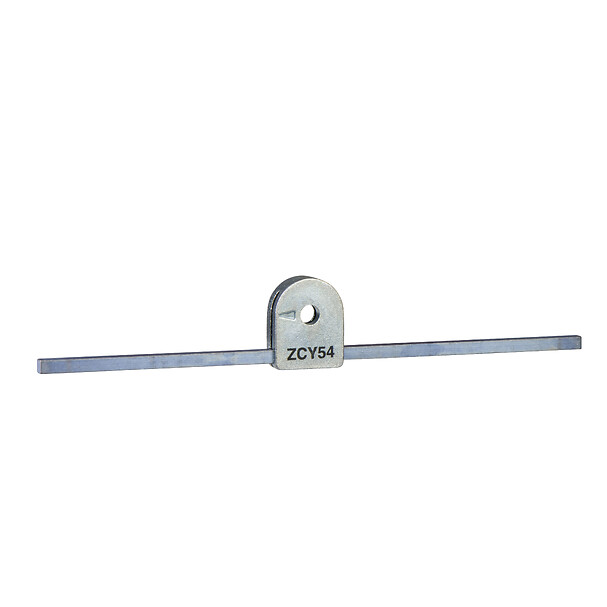

ZCY54
Limit switch lever, Limit switches XC Standard, ZCY, steel square rod 3 mm, L = 125 mm

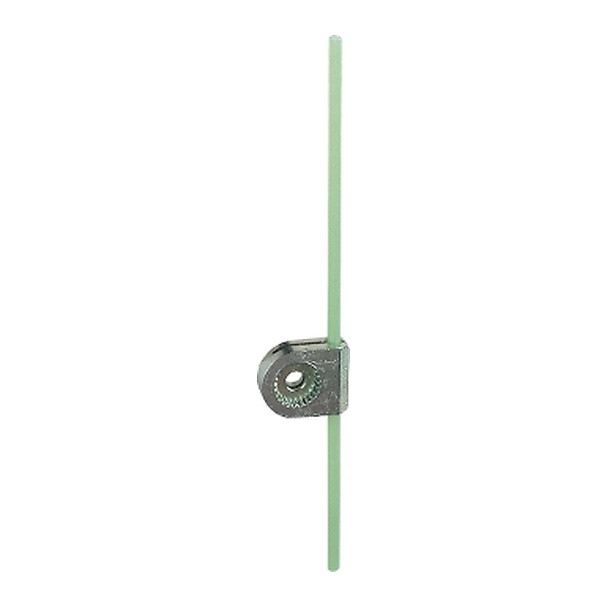

ZCY55
