XCMD2501L1

limit switch XCMD - with rotary head W/O operating lever - 1NC+1NO - slow - 1 m

END OF COMMERCIALISATION End of commercialization date : January 04th 2022 End of service date : January 04th 2022

Download pdf datasheet Download 3d cad file Find a distributor

Characteristics
Technical Drawings
Documents & Downloads
Related products & accessories

Expand all

Datasheet

Range of product

Telemecanique Limit switches XC Standard

Series name

Standard format

Product or component type

Limit switch

Device short name

XCMD

Sensor design

Miniature

Body type

Fixed

Head type

Rotary head

Material

Metal

Body material

Zamak

Head material

Zamak

Fixing mode

By the body

Movement of operating head

Rotary

Type of operator

Spring return without operating lever

Type of approach

Lateral approach, 2 directions

Contacts type and composition

1 NC + 1 NO

Contact operation

Slow-break

Switch actuation

By 30° cam

Electrical connection

Removable cable connector

Cable composition

5 x 0.75 mm²

Contacts insulation form

Wire insulation material

PvR

Positive opening

With

Contact code designation

B300, AC-15 (Ue = 240 V), Ie = 1.5 A conforming to IEC 60947-5-1 appendix A, R300, DC-13 (Ue = 250 V), Ie = 0.1 A conforming to IEC 60947-5-1 appendix A

Resistance across terminals

25 mOhm conforming to IEC 60255-7 category 3

Shock resistance

25 gn for 18 ms conforming to IEC 60068-2-27

Vibration resistance

25 gn (f= 10-500 Hz) conforming to IEC 60068-2-6

IP degree of protection

IP66 conforming to IEC 60529, IP67 conforming to IEC 60529, IP68 conforming to IEC 60529

IK degree of protection

IK06 conforming to IEC 62262

Overvoltage category

Class I conforming to IEC 61140, class I conforming to NF C 20-030

Protective treatment

Product certifications

CCC
CSA
UL

Standards

CSA C22.2 No 14
IEC 60204-1
IEC 60947-5-1
UL 508

Unit type of package 1

PCE

Number of units in package 1

Package 1 height

3 CENTIMETER

Package 1 width

12.5 CENTIMETER

Package 1 length

12.5 CENTIMETER

Package 1 weight

199 GRAM

California proposition 65

WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Expand all

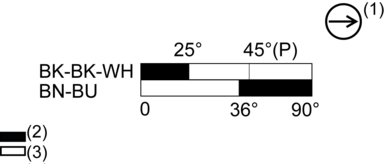

Technical Drawings
