XCMW110

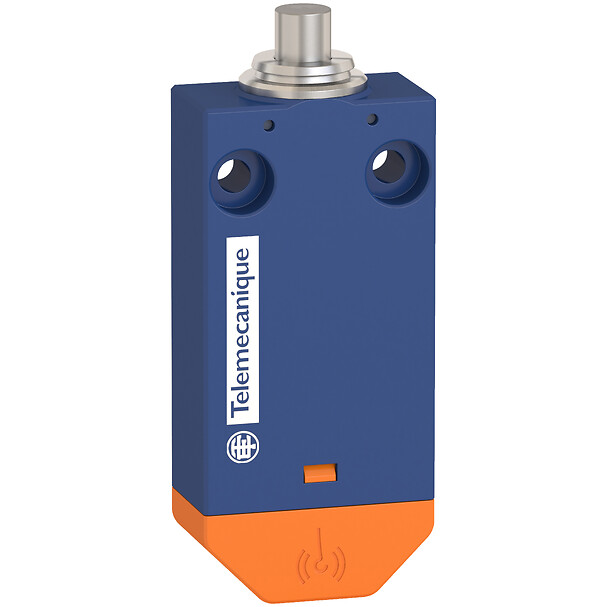

Wireless limit switch, Limit switches XC Standard, XCMW, plunger
Commercialised
Expand all
Datasheet
Range of product
Telemecanique Limit switches XC Standard
Series name
Miniature format
Product or component type
Wireless limit switch
Device short name
XCMW
Sensor design
Miniature
Body type
Fixed
Head type
Plunger head
Body material
Plastic
Head material
Metal
Lever material
Metal
Fixing mode
By 2 screws
Type of operator
Spring return plunger metal
Switch actuation
On end
Communication network type
ZigBee green power - 2.4 GHz conforming to IEEE 802.15.4
Type of approach
Vertical approach, 1 direction
Electrical composition code
PW1
Response time
<= 2 ms
Contact operation
Snap action
Operating rate
60 CYCLE_PER_MINUTE
Switching operation per year
3600
Electromagnetic compatibility
Radiated emission, immunity for industrial environments, susceptibility to electromagnetic fields - test level: 3 V/m (80...2700 MHz, distance = 20 m), susceptibility to electromagnetic fields - test level: 10 V/m (80...2000 MHz), electrostatic discharge immunity test - test level: 6 kV (on contact (on metal parts)), electrostatic discharge immunity test - test level: 8 kV (in free air (in insulating parts))
Shock resistance
50 gn for 11 ms conforming to IEC 60068-2-27
Vibration resistance
25 gn (f= 10-500 Hz) conforming to IEC 60068-2-6, +/- 10 mm (f= 2-11 Hz) conforming to IEC 60068-2-6
IP degree of protection
IP65 conforming to IEC 60529
IK degree of protection
IK04 conforming to IEC 62262
Directives
1999/5/EC - R&TTE directive
2004/108/EC - electromagnetic compatibility
2004/108/EC - electromagnetic compatibility
Standards
IEC 60947-1
IEC 60947-5-1
IEC 60947-5-1
Radio agreement
IC conforming to RSS, FCC conforming to RCM
Unit type of package 1
PCE
Number of units in package 1
1
Unit type of package 2
S01
Number of units in package 2
22
Package 2 height
15 CENTIMETER
Package 2 width
15 CENTIMETER
Package 2 length
40 CENTIMETER
Package 2 weight
1.488 KILOGRAM
Indivisible sale quantity
1
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
