XZBWR2STT24
Programmable receiver, 4 PNP, 200 mA, 24 V DC, 2 pusbuttons, 6 LEDs
COMMERCIALISED
Expand all
Datasheet
Product or component type
Programmable receiver
Vibration resistance
-
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
4.4 CENTIMETER
Package 1 width
9.8 CENTIMETER
Package 1 length
13 CENTIMETER
Package 1 weight
0.128 KILOGRAM
Indivisible sale quantity
1
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Expand all
Technical Drawings

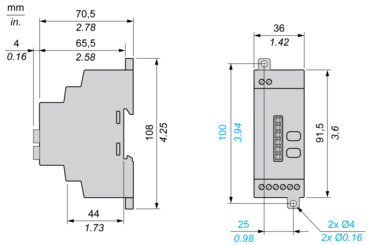

Receiver Dimensions

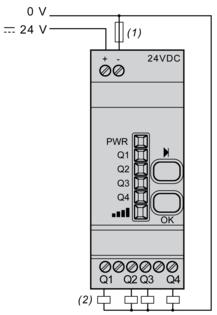

Receiver Wiring Diagram

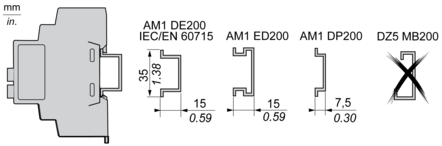

Receiver Mounting
Receiver Mounting
Receiver Mounting

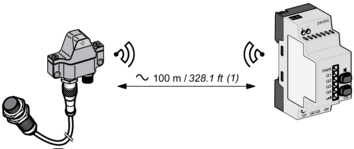

Unobstructed Mounting

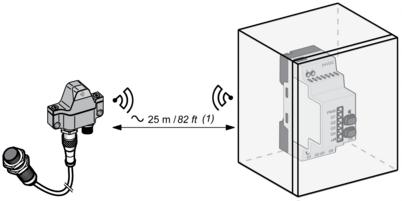

Mounting in a Metal Cabinet
