XCMW116

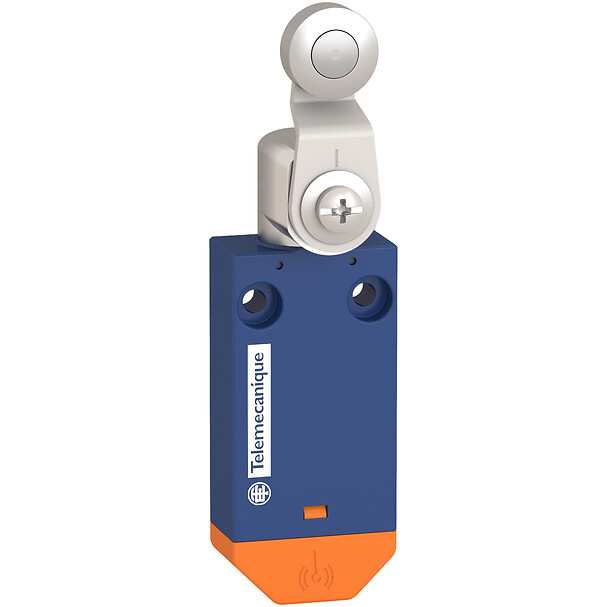

Wireless and batteryless limit switch XCMW, steel roller lever, 22 mm, radio transmitter
COMMERCIALISED
Expand all
Datasheet
Range of product
Telemecanique Limit switches XC Standard
Series name
Miniature format
Product or component type
Wireless limit switch
Device short name
XCMW
Sensor design
Miniature
ETIM classification
ETIM 9 - EC000030 - End switch
Body type
Fixed
Head type
Rotary head
Body material
Plastic
Head material
Metal
Lever material
Metal
Fixing mode
By 2 screws
Type of operator
Spring return roller lever elastomer roller diameter 50 mm
Switch actuation
By 30° cam
Type of approach
Lateral approach, 2 directions
Maximum sensing distance
100 m in free field, 300 m with external antenna, 25 m in industrial environment
Directives
1999/5/EC - R&TTE directive
2004/108/EC - electromagnetic compatibility
2004/108/EC - electromagnetic compatibility
Standards
IEC 60947-1
IEC 60947-5-1
IEC 60947-5-1
Indivisible sale quantity
1
Mechanical durability
400000 cycles
Minimum torque for tripping
0.5 N.m
Maximum actuation speed
0.1 m/s
Electrical composition code
PW1
Contact operation
Snap action
Operating rate
60 c.p.m
Communication network type
ZigBee green power - 2.4 GHz conforming to IEEE 802.15.4
Response time
<= 2 ms
Emission power
3 MW
Width
30 mm
Depth
16 mm
Product weight
0.088 kg
IK degree of protection
IK04 conforming to IEC 62262
IP degree of protection
IP65 conforming to IEC 60529
Ambient air temperature for operation
-25…55 °C
Ambient air temperature for storage
-40…70 °C
Shock resistance
50 gn for 11 ms conforming to IEC 60068-2-27
Vibration resistance
+/- 10 mm (f= 2-11 Hz) conforming to IEC 60068-2-6, 25 gn (f= 10-500 Hz) conforming to IEC 60068-2-6
Radio agreement
IC conforming to RSS, FCC conforming to RCM
Electromagnetic compatibility
Radiated emission, immunity for industrial environments, susceptibility to electromagnetic fields - test level: 3 V/m (80...2700 MHz, distance = 20 m), susceptibility to electromagnetic fields - test level: 10 V/m (80...2000 MHz), electrostatic discharge immunity test - test level: 6 kV (on contact (on metal parts)), electrostatic discharge immunity test - test level: 8 kV (in free air (in insulating parts))
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Warranty
18 months
Country of origin
FR (France)
Unit type of package 1
PCE
Number of units in package 1
1
New Package 1 GTIN-13
3666916053393
Package 1 height
3.4 cm
Package 1 width
5 cm
Package 1 length
13 cm
Package 1 weight
0.104 kg
Unit type of package 2
S01
Number of units in package 2
22
New Package 2 GTIN 14
13666916053390
Package 2 height
15 cm
Package 2 width
15 cm
Package 2 length
40 cm
Package 2 weight
2.477 kg
New Package 3 GTIN 14
23666916053397
Expand all
Technical Drawings

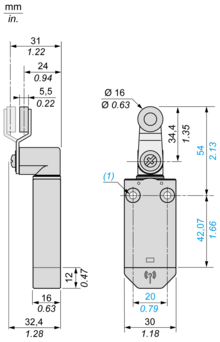

Dimensions
Screw Mounting

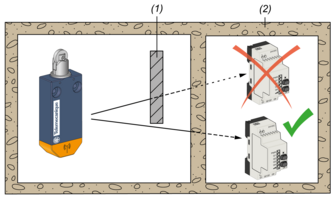

Unobstructed Mounting
Mounting in a Metal Cabinet

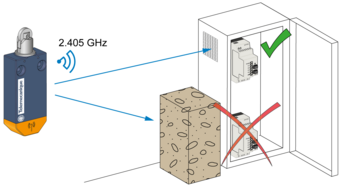

Signal Attenuation According to the Material

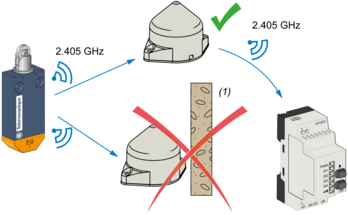

Mounting Tips for Antenna
Optimized Installation
Mounting Tips for Antenna

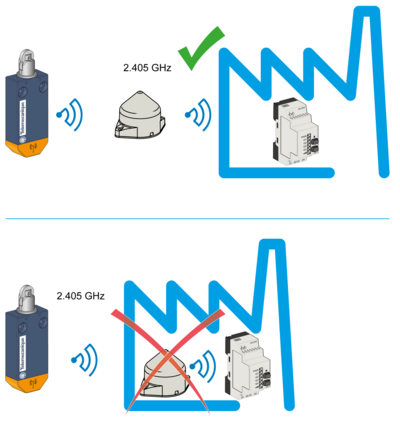

The Relay Antenna is used to Bypass an Obstacle and/or Increase the Range
Mounting with roller lever
Recommended Mounting
Mounting with roller lever
Mounting to be Avoided
Characteristics of Actuation
Technical Description

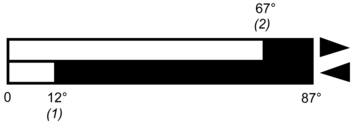

Functional Diagram, Travel Distance
