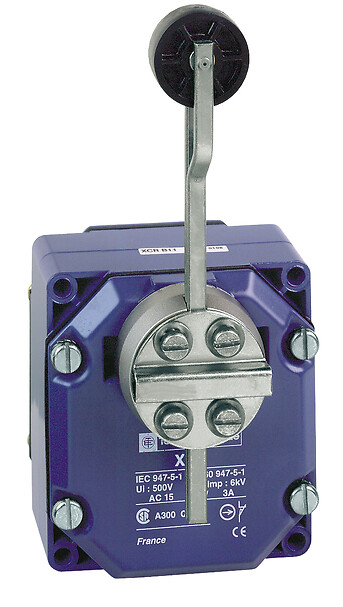

XCRB52
Limit switch, Limit switches XC Standard, XCR, thermoplastic spring return roller lever, 2X(1NC+NO)
Commercialised
Expand all
Datasheet
Range of product
OsiSense XC
Series name
Special format
Product or component type
Limit switch
Product specific application
For hoisting and mechanical handling applications
Device short name
XCR
Sensor design
-
Body type
Fixed
Head type
Rotary head
Material
Metal
Fixing mode
By the body
Movement of operating head
Rotary
Type of operator
Spring return roller lever thermoplastic -
Type of approach
Lateral approach, 2 directions
Electrical connection
Screw-clamp terminals, clamping capacity: 1 x 0.5...2 x 2.5 mm²
Contacts type and composition
2 x (1 NC + 1 NO)
Contact operation
Slow-break, break before make
Contact block per direction [control circuit]
1 per direction
Positive opening
With
Body material
Zinc alloy
Switch actuation
By any moving part
Cable entry
1 entry tapped for Pg 13.5 cable gland, cable outer diameter: 9-12 mm conforming to NF C 68-300
Contacts insulation form
Zb
Contact code designation
A300, AC-15 (Ue = 240 V), Ie = 3 A conforming to IEC 60947-5-1 appendix A, Q300, DC-13 (Ue = 250 V), Ie = 0.27 A conforming to IEC 60947-5-1 appendix A
Resistance across terminals
25 MOhm conforming to IEC 60255-7 category 3
Terminals description ISO n°1
(13-14)NO
(21-22)NC
(21-22)NC
Shock resistance
68 gn conforming to IEC 60068-2-27
Vibration resistance
9 gn (f= 10-500 Hz) conforming to IEC 60068-2-6
IP degree of protection
IP54 conforming to IEC 60529
Overvoltage category
Class I conforming to IEC 61140, class I conforming to NF C 20-030
Protective treatment
TC
Product certifications
CCC
CSA
CSA
Standards
CSA C22.2 No 14
IEC 60204-1
IEC 60947-5-1
NF C 79-130
IEC 60204-1
IEC 60947-5-1
NF C 79-130
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
8 CENTIMETER
Package 1 width
10.5 CENTIMETER
Package 1 length
20.5 CENTIMETER
Package 1 weight
1.073 KILOGRAM
Indivisible sale quantity
1
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Expand all
Technical Drawings

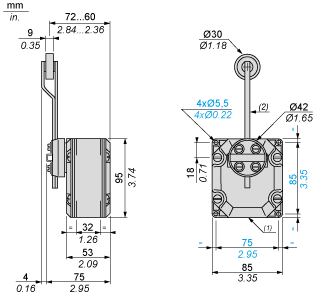

Dimensions
- (1) 1 tapped entry for n° 13 cable gland.
- (2) Rod + roller length: 160 mm.
Wiring Diagram
Two 2-pole NC + NO Break Before Make, Slow Break
- (A) 1 contact
- (B) 2 contact
Functionnal Diagram
- (P) Positive opening point
- (A) 1st contact
- (B) 2nd contact
- (1) NC contact with positive opening operation
- (2) Closed
- (3) Open
- (4) Tripping
- (5) Resetting
Expand all
Documents & Downloads
Document name
Date
Size
2025-01-16
10778833
2025-01-10
10641190
Document name
Date
Size
1/13/2005
203180
1/13/2005
22088
1/13/2005
258716
1/13/2005
281631
1/13/2005
480170
1/13/2005
508182
1/13/2005
519866
1/13/2005
54400
1/13/2005
787406
Document name
Date
Size
2025-05-19
298191
Document name
Date
Size
2024-10-15
253147
2024-03-19
228277
2024-03-19
190308
Document name
Date
Size
2017-10-26
530424
2017-11-16
2626190
Expand all
Related products & accessories
XCRZ02
Limit switch lever, Limit switches XC Standard, XCRZ, thermoplastic roller for
XCRZ03
Limit switch lever, Limit switches XC Standard, XCRZ, steel square rod 6 mm, L=200 mm
XCRZ05
Limit switch lever, Limit switches XC Special, XCRZ, large thermoplastic roller
XCRZ09
Limit switches XC Standard, quick fixing release bracket, quick fixing release bracket, for XCRA,B, E, F
XCRZ12
Limit switch contact block with mounting plate, Limit switches XC Standard, XCRZ, 2X(1NO+NC), snap action
XCRZ15

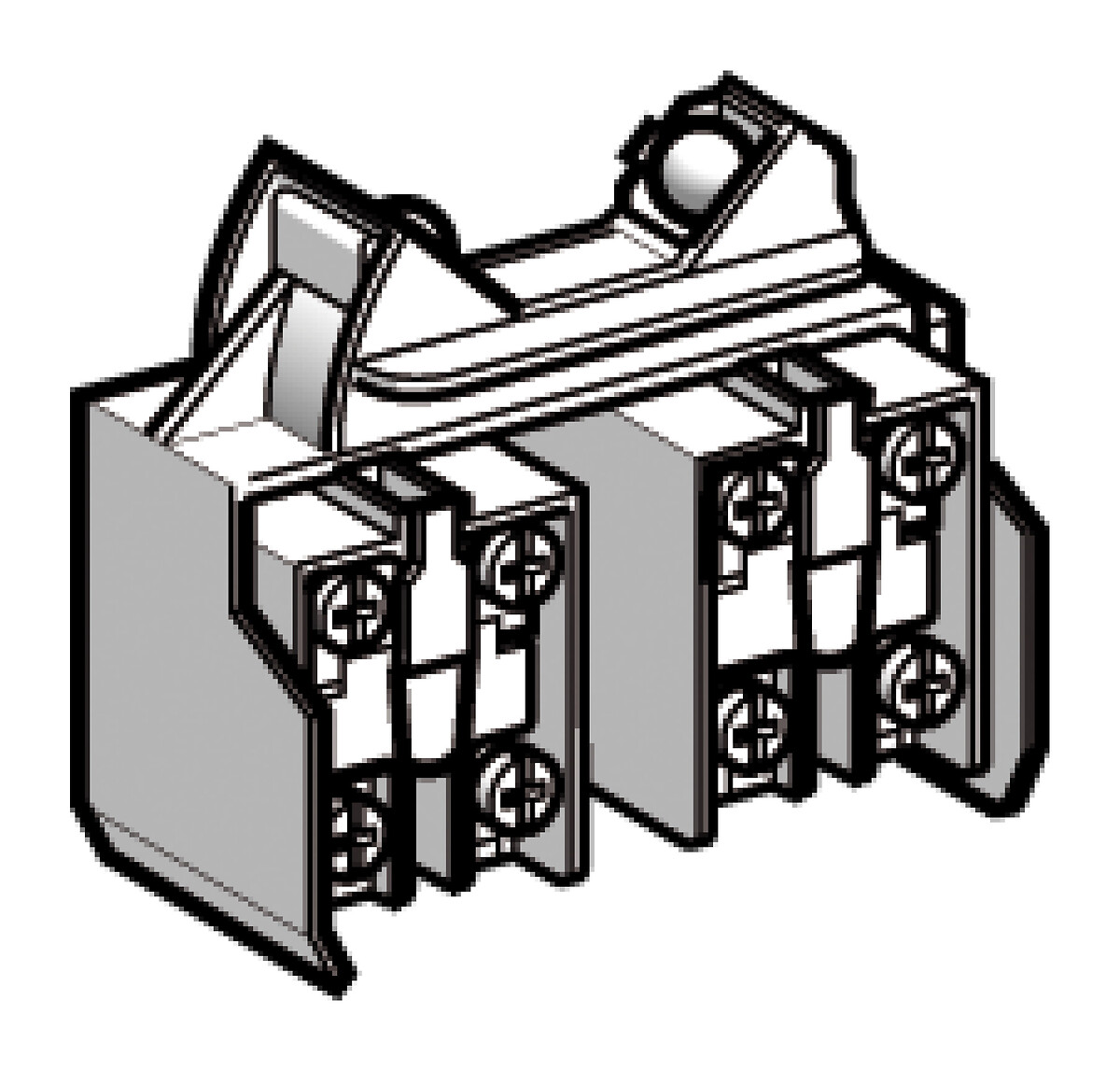

Limit switch contact block with mounting plate, Limit switches XC Standard, XCRZ, 2X(1NO+NC), slow break, break before make
