XCRZ15
Limit switch lever XCRZ
COMMERCIALISED
Expand all
Datasheet
Range of product
OsiSense XC
Device short name
XCRZ
Product compatibility
XCRA
XCRB
XCRE
XCRF
XCRB
XCRE
XCRF
Product or component type

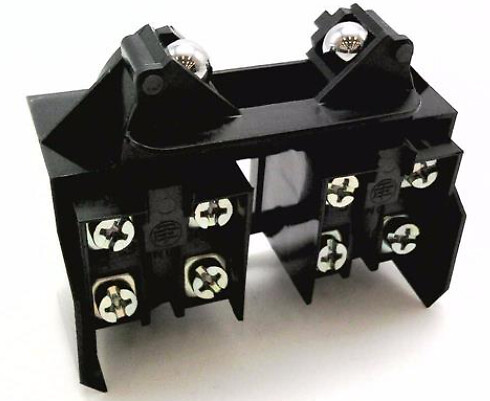

Limit switch contact block with mounting plate
Series name
Special format
Contacts type and composition
2 x (1 NC + 1 NO)
Electrical connection
Screw-clamp terminals, clamping capacity: 1 x 0.5...2 x 2.5 mm²
Contact operation
Slow-break, break before make
Contacts material
Silver plated contacts
Positive opening
With
Contacts insulation form
Zb
Contact code designation
-
Resistance across terminals
25 mOhm conforming to IEC 60255-7 category 3
Compatibility code
XCRZ
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
6 CENTIMETER
Package 1 width
3.5 CENTIMETER
Package 1 length
6 CENTIMETER
Package 1 weight
0.064 KILOGRAM
Unit type of package 2
BAG
Number of units in package 2
1
Package 2 height
6 CENTIMETER
Package 2 width
6 CENTIMETER
Package 2 length
3.5 CENTIMETER
Package 2 weight
0.064 KILOGRAM
Indivisible sale quantity
1
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
