XCRF57
Limit switch, Limit switches XC Standard, XCR, metal stay put T rods lever square rod 6 mm, 2X(1NC+NO)
Commercialised
Expand all
Datasheet
Range of product
OsiSense XC
Series name
Special format
Product or component type
Limit switch
Product specific application
For hoisting and mechanical handling applications
Device short name
XCR
Sensor design
-
Body type
Fixed
Head type
Rotary head
Material
Metal
Fixing mode
By the body
Movement of operating head
Rotary
Type of operator
Stay put crossed rods lever metal square rod 6 mm
Type of approach
Lateral approach, 2 directions
Body material
Zinc alloy
Electrical connection
Screw-clamp terminals, clamping capacity: 1 x 0.5...2 x 2.5 mm²
Contacts type and composition
2 x (1 NC + 1 NO)
Cable entry
1 entry tapped for Pg 13.5 cable gland, cable outer diameter: 9-12 mm conforming to NF C 68-300
Contact operation
Slow-break, break before make
Switch actuation
By any moving part
Positive opening
With
Contact block per direction [control circuit]
1 per direction
Contacts insulation form
Zb
Contact code designation
A300, AC-15 (Ue = 240 V), Ie = 3 A conforming to IEC 60947-5-1 appendix A, Q300, DC-13 (Ue = 250 V), Ie = 0.27 A conforming to IEC 60947-5-1 appendix A
Resistance across terminals
25 MOhm conforming to IEC 60255-7 category 3
Terminals description ISO n°1
(13-14)NO
(21-22)NC
(21-22)NC
Shock resistance
68 gn conforming to IEC 60068-2-27
Vibration resistance
9 gn (f= 10-500 Hz) conforming to IEC 60068-2-6
IP degree of protection
IP54 conforming to IEC 60529
Overvoltage category
Class I conforming to IEC 61140, class I conforming to NF C 20-030
Protective treatment
TC
Product certifications
CCC
CSA
CSA
Standards
CSA C22.2 No 14
IEC 60204-1
IEC 60947-5-1
NF C 79-130
IEC 60204-1
IEC 60947-5-1
NF C 79-130
Unit type of package 1
PCE
Number of units in package 1
1
Unit type of package 2
S02
Number of units in package 2
3
Package 2 height
15 CENTIMETER
Package 2 width
30 CENTIMETER
Package 2 length
40 CENTIMETER
Package 2 weight
3.684 KILOGRAM
Unit type of package 3
P06
Number of units in package 3
48
Package 3 height
77 CENTIMETER
Package 3 width
80 CENTIMETER
Package 3 length
60 CENTIMETER
Package 3 weight
70.596 KILOGRAM
Indivisible sale quantity
1
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Expand all
Technical Drawings
Dimensions
- (1) 1 tapped entry for n° 13 cable gland.
- (2) Rod length: 200 mm.
- (3) Rod length: 300 mm.
Wiring Diagram
Two 2-pole NC + NO Break Before Make, Slow Break
- (A) 1 contact
- (B) 2 contact

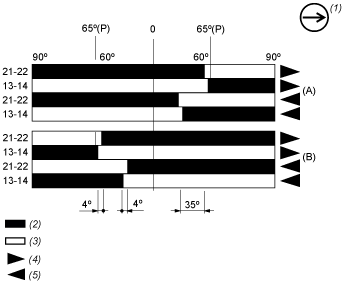

Functionnal Diagram
- (P) Positive opening point
- (A) 1st contact
- (B) 2nd contact
- (1) NC contact with positive opening operation
- (2) Closed
- (3) Open
- (4) Tripping
- (5) Resetting
