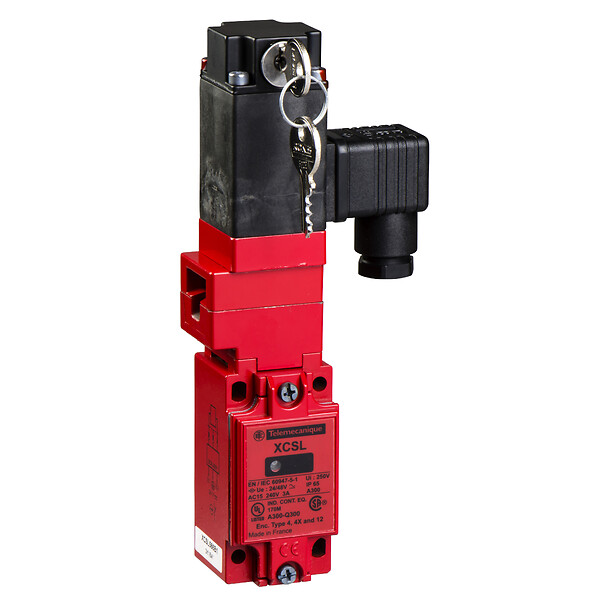

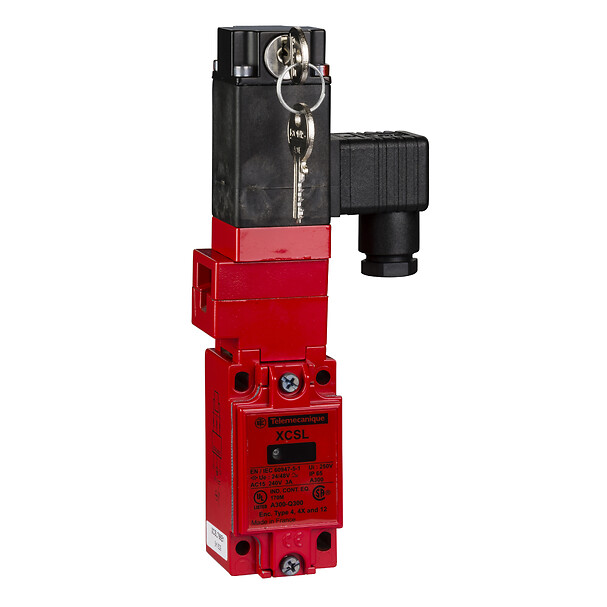

XCSL566B1
Safety interlock switch XCSL, metal, solenoid, 300 VAC, 10 A
COMMERCIALISED
Expand all
Datasheet
Enclosure type
Water resistant enclosure for indoor/outdoor, dustproof enclosure for indoor/outdoor, ice/sleet proof enclosure for indoor/outdoor
Contact operation
Slow-break, break before make
Locking options description
With locking of actuator, unlocking by key operated lock
[Us] rated supply voltage
24 V DC
Cable entry
-
Contacts type and composition
-
Enclosure material
metal enclosure
Installation direction
-
Pilot light
-
IP degree of protection
IP67
Product certifications
CE
CSA LR4408794 class 3211 03
UL listed file E164353 CCN NKCR
CSA LR4408794 class 3211 03
UL listed file E164353 CCN NKCR
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
5.2 CENTIMETER
Package 1 width
6.2 CENTIMETER
Package 1 length
28 CENTIMETER
Package 1 weight
0.968 KILOGRAM
Unit type of package 2
S02
Number of units in package 2
8
Package 2 height
15 CENTIMETER
Package 2 width
30 CENTIMETER
Package 2 length
40 CENTIMETER
Package 2 weight
8.199 KILOGRAM
Unit type of package 3
CAR
Number of units in package 3
1
Package 3 height
28 CENTIMETER
Package 3 width
5.2 CENTIMETER
Package 3 length
6.2 CENTIMETER
Package 3 weight
0.968 KILOGRAM
Indivisible sale quantity
1
