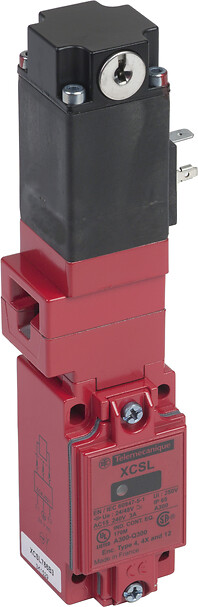

XCSL766B3
Interlock switch 300 VAC 10as XCSL
Commercialized
Expand all
Datasheet
Device short name
XCSL
Enclosure type
Water resistant enclosure for indoor/outdoor
Dustproof enclosure for indoor/outdoor
Ice/sleet proof enclosure for indoor/outdoor
Dustproof enclosure for indoor/outdoor
Ice/sleet proof enclosure for indoor/outdoor
[In] rated current
10 A
[Us] rated supply voltage
24 V DC
Actuator
Key
Contact operation
Slow-break, break before make
Contacts type and composition
1 NO for staggered
2 NC
2 NC
Depth
43.94 mm
Enclosure material
metal enclosure
Height
194.06 mm
Installation direction
Electromagnet connection: right
Actuator supply: left
Actuator supply: left
Key locking position
Front
Locking options description
With locking of actuator, unlocking by key operated lock
Number of poles
3
Permissible voltage
300 V AC
Pilot light
LED orange
Ambient air temperature for operation
-13…158 °F
IP degree of protection
IP67
NEMA degree of protection
NEMA 1/2/3/4/12
Unit Type of Package 1
PCE
Number of Units in Package 1
1
Package 1 Height
5.2 cm
Package 1 Width
6.2 cm
Package 1 Length
28.0 cm
Package 1 Weight
977.0 g
Unit Type of Package 2
S02
Number of Units in Package 2
10
Package 2 Height
15.0 cm
Package 2 Width
30.0 cm
Package 2 Length
40.0 cm
Package 2 Weight
10.225 kg
Sustainable offer status
Green Premium product
EU RoHS Directive
Pro-active compliance (Product out of EU RoHS legal scope)
Mercury free
Yes
RoHS exemption information
Circularity Profile
No need of specific recycling operations
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
