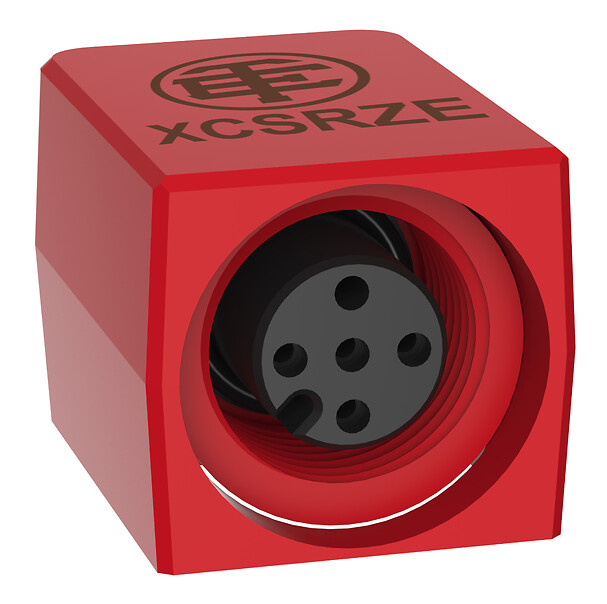

XCSRZE
M12 plug for XCSRC Daisy Chain models, Telemecanique Safety switches XCS, Loopback device
Commercialised
Expand all
Datasheet
Range of product
Telemecanique Safety switches XCS
Accessory / separate part category
RFID accessory
Accessory / separate part type
Loopback device
Product or component type
M12 plug for XCSRC Daisy-Chain models
Accessory / separate part destination
RFID safety switch
Product compatibility
XCSRC...2M12
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
4.8 CENTIMETER
Package 1 width
7.5 CENTIMETER
Package 1 length
7.8 CENTIMETER
Package 1 weight
0.016 KILOGRAM
Unit type of package 2
S01
Number of units in package 2
24
Package 2 height
15 CENTIMETER
Package 2 width
15 CENTIMETER
Package 2 length
40 CENTIMETER
Package 2 weight
0.544 KILOGRAM
Indivisible sale quantity
1
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Expand all
Technical Drawings
Dimensions
Connections
Wiring Diagram: Series Connection
- (1) Start
- (2) Power circuit
- (3) Loopback device
- (4) M12/M12 female jumpers
- (5) Pre-wired female connectors
- (6) Diagnostic module (option)
