XESP2051

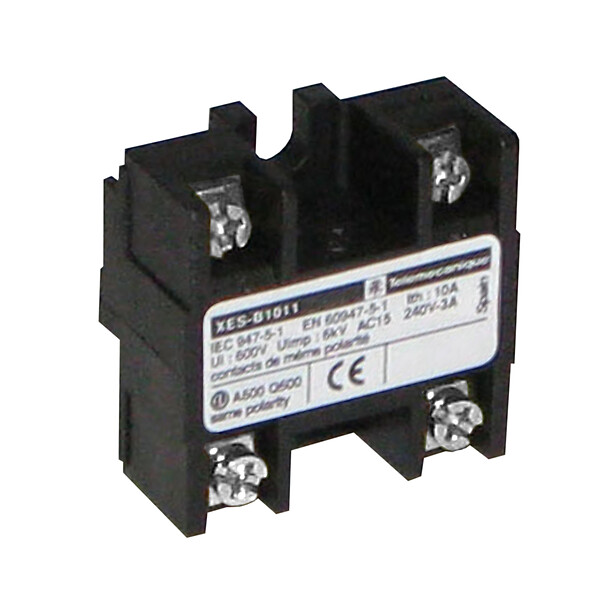

Limit switch contact block, Limit switches XC Standard, XESP, 1C/O snap action, simultaneous, silver plated
Commercialised
Expand all
Datasheet
Range of product
Telemecanique Limit switches XC Standard
Series name
Standard format
Product or component type
Limit switch contact block
Device short name
XESP
Contacts type and composition
1 C/O
Contact operation
Snap action, simultaneous
Electrical connection
Screw-clamp terminals, clamping capacity: 1 x 0.75...2 x 1.5 mm²
Contacts insulation form
Za
Contacts material
Silver plated contacts
Positive opening
Without
Resistance across terminals
25 mOhm conforming to IEC 60255-7 category 3
Unit type of package 1
PCE
Number of units in package 1
1
Package 2 height
15 CENTIMETER
Package 2 width
15 CENTIMETER
Package 2 length
40 CENTIMETER
Package 2 weight
1.35 KILOGRAM
Indivisible sale quantity
1
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
