ZCP21

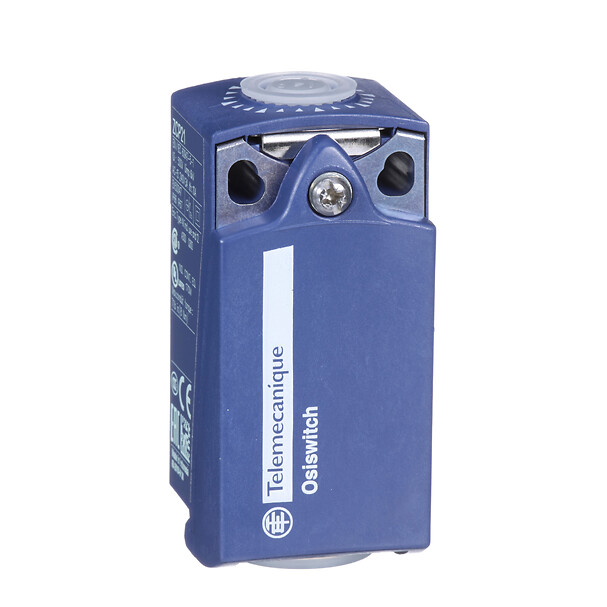

Limit switch body, Limit switches XC Standard, ZCP, compact, 1NC+1 NO, snap action
COMMERCIALISED
Expand all
Datasheet
Range of product
TE LIMIT SWTES XC STNDRD
Series name
STANDARD COMPACT
Product or component type
LIMIT SWITCH BODY
Device short name
ZCP
Design
COMPACT
Body type
FIXED
Body material
PLASTIC
Contacts type and composition
1 NC 1 NO
Contact operation
SNAP ACTION
Electrical connection
Screw-clamp terminals, clamping capacity: 1 x 0.34...2 x 1.5 mm²
Contacts insulation form
ZB
Contacts material
SILVER PLATED CONTACTS
Positive opening
WITH
Contact code designation
B300, AC-15 (Ue = 240 V), Ie = 1.5 A conforming to IEC 60947-5-1 appendix A,
R300, DC-13 (Ue = 250 V), Ie = 0.1 A conforming to IEC 60947-5-1 appendix A
R300, DC-13 (Ue = 250 V), Ie = 0.1 A conforming to IEC 60947-5-1 appendix A
Product compatibility
XCKP
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
4.0000 CENTIMETER
Package 1 width
4.0000 CENTIMETER
Package 1 length
7.6000 CENTIMETER
Package 1 weight
60.0000 GRAM
Unit type of package 2
S02
Number of units in package 2
81
Package 2 height
15.0000 CENTIMETER
Package 2 width
30.0000 CENTIMETER
Package 2 length
40.0000 CENTIMETER
Package 2 weight
5.4200 KILOGRAM
Unit type of package 3
P06
Number of units in package 3
1296
Package 3 height
75.0000 CENTIMETER
Package 3 width
60.0000 CENTIMETER
Package 3 length
80.0000 CENTIMETER
Package 3 weight
96.1320 KILOGRAM
