XS1L04NA310

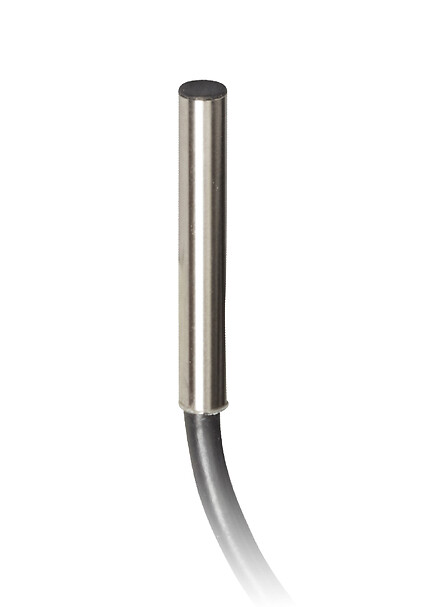

Inductive proximity sensors XS, inductive sensor XS1 Ø4, L28mm, brass, Sn1mm, 5..24VDC, cable 2m
End of comm. announced End of commercialization date : End of service date :

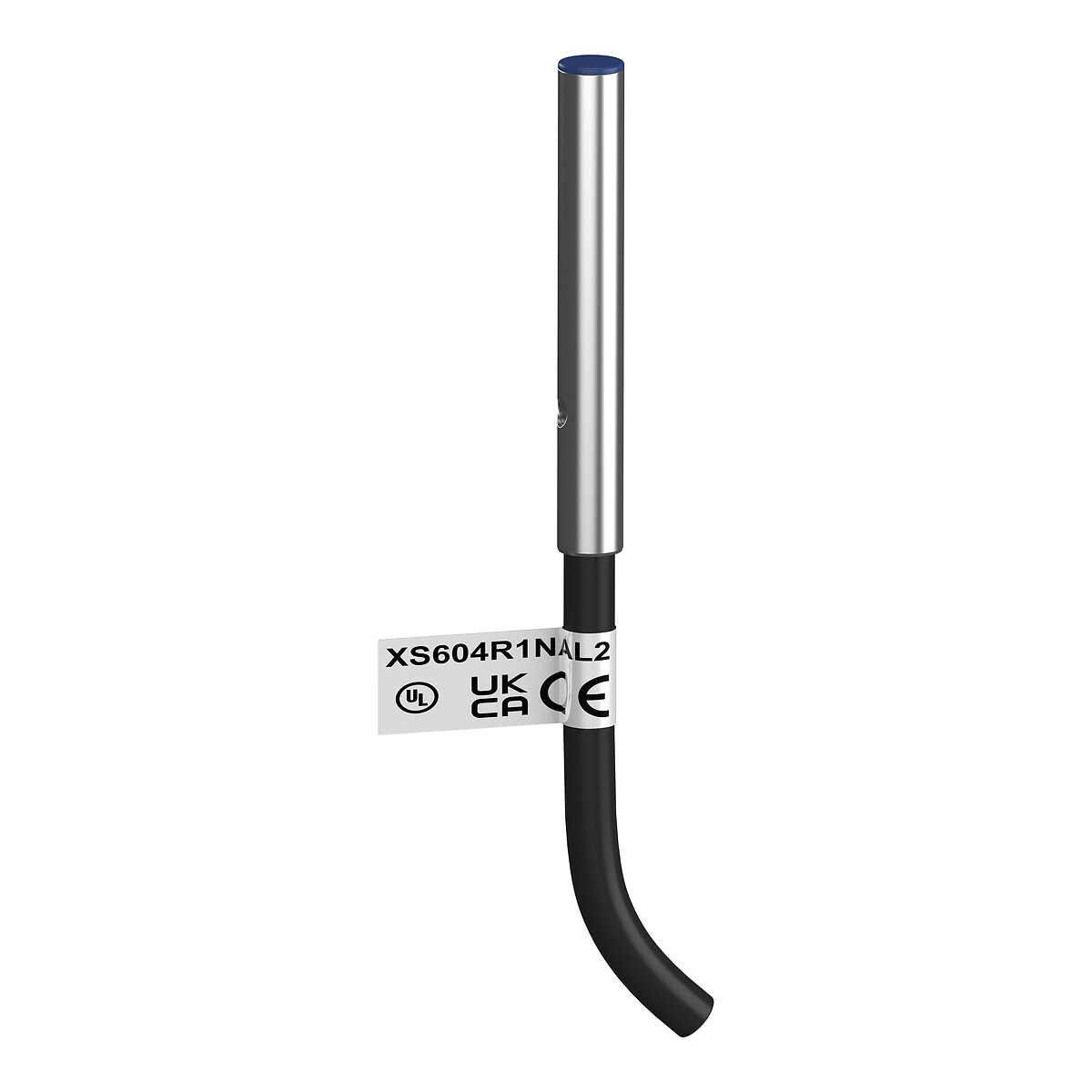

XS1L04NA310 is replaced by the following product:
Quantity : 1
Expand all
Datasheet
Range of product
Telemecanique Inductive proximity sensors XS
Series name
General purpose
Sensor type
Inductive proximity sensor
Sensor name
XS1
Device application
Not applicable
Sensor design
Cylindrical Ø 4 mm plain
Size
28 mm
Body type
Fixed
Type of output signal
Discrete
Wiring technique
3-wire
Discrete output function
1 NO
Detector flush mounting acceptance
Flush mountable
Discrete output type
NPN
Material
Metal
Electrical connection
Cable
[Us] rated supply voltage
5...24 V DC
Output circuit type
DC
Switching capacity in mA
<= 100 mA with overload and short-circuit protection
IP degree of protection
IP67 conforming to IEC 60529
Enclosure material
Nickel plated brass
Detection face
Frontal
Front material
PPS
Sensing range
> 0...2.5 mm
Cable composition
3 x 0.11 mm²
Status LED
Output state: 1 LED (yellow)
Wire insulation material
PVC
Switching frequency
<= 5000 Hz
Voltage drop
<2 V (closed)
Current consumption
<= 10 mA no-load
Delay first up
5 MILLISECOND
Delay response
1 MILLISECOND
Marking
CE
Delay recovery
1 MILLISECOND
Product certifications
CSA
UL
UL
Vibration resistance
25 gn amplitude = +/- 2 mm (f = 10-55 Hz) conforming to IEC 60068-2-6
Shock resistance
50 gn for 11 ms conforming to IEC 60068-2-27
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
4.1 CENTIMETER
Package 1 width
9.5 CENTIMETER
Package 1 length
13 CENTIMETER
Package 1 weight
27 GRAM
Unit type of package 2
S02
Number of units in package 2
22
Package 2 height
15 CENTIMETER
Package 2 width
30 CENTIMETER
Package 2 length
40 CENTIMETER
Package 2 weight
909 GRAM
Indivisible sale quantity
1
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Expand all
Technical Drawings

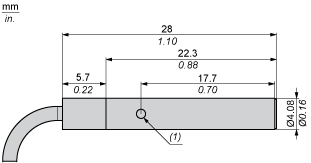

Dimensions
- (1) LED
Minimum Mounting Distances in mm
- e (1) ≥ 2 mm/0.79 in.
- e (1) ≥ 2 mm/0.79 in.
- e (2) ≥ 12 mm/0.47 in.
- e (1) ≥ 2 mm/0.79 in.
- e (2) ≥ 12 mm/0.47 in.
- e (3) ≥ 3 mm/0.12 in.
- e (1) ≥ 2 mm/0.79 in.
- e (2) ≥ 12 mm/0.47 in.
- e (3) ≥ 3 mm/0.12 in.
- d ≥ 4 mm/0.16 in.
- h ≥ 0 mm/0 in.
Mounting
- (1) Bending cable: 4 x external cable diameter
Wiring Schemes
- BU : Blue
- BN : Brown
- BK : Black
Performance Curves
Standard Steel Target (mm) : 5x5x1
- Pick-up points
- Drop-out points (object approaching from the side)
- (y) Sensing distance in mm
