XU2S18PP340WD

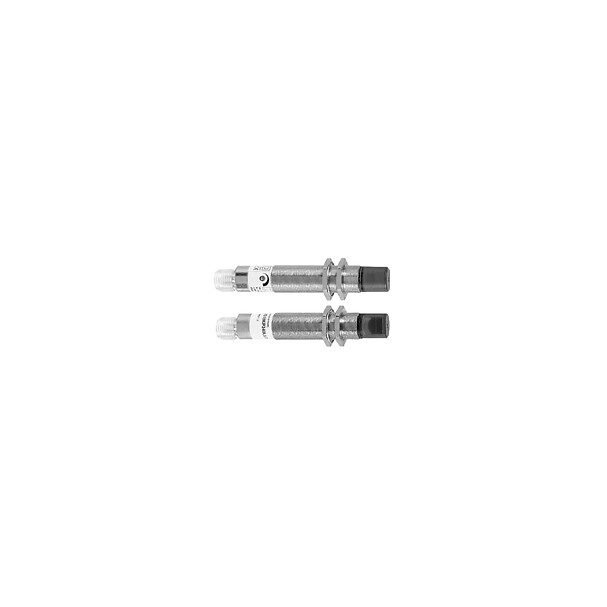

Photoelectric safety sensor XU2S, thru-beam, detection range 750...1200 mm, 12...24 V, detection of body
COMMERCIALISED
Expand all
Datasheet
Range of product
Telemecanique Safety light curtains XUSL
ETIM classification
ETIM 9 - EC002716 - Through beam photoelectric sensor
Material
-
Safety level
-
Safety reliability data
-
[Sn] nominal sensing distance
8-8 m
Detection system
Transmitter-receiver system
Delay response
1 ms
Standards
IEC 60825-1
IEC 61496-1
IEC 61496-2
IEC 61496-1
IEC 61496-2
Indivisible sale quantity
1
Electrical connection
-
[Us] rated supply voltage
-
Switching capacity in mA
-
Voltage drop
-
Current consumption
-
Output type
-
Tightening torque
-
Function available
-
Delay recovery
1 ms
Product weight
0.155 kg
IP degree of protection
-
Ambient air temperature for storage
-40…70 °C
Shock resistance
-
Vibration resistance
-
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Warranty
18 months
Country of origin
FR (France)
Unit type of package 1
PCE
Number of units in package 1
1
New Package 1 GTIN-13
3666916028957
Package 1 height
4.2 cm
Package 1 width
9.5 cm
Package 1 length
13 cm
Package 1 weight
0.155 kg
Unit type of package 2
S02
Number of units in package 2
22
New Package 2 GTIN 14
13666916028954
Package 2 height
15 cm
Package 2 width
30 cm
Package 2 length
40 cm
Package 2 weight
4.077 kg
Unit type of package 3
CAR
Number of units in package 3
1
New Package 3 GTIN 14
23666916028951
Package 3 height
9.5 cm
Package 3 width
4.2 cm
Package 3 length
13 cm
Package 3 weight
0.165 kg
Expand all
Technical Drawings
Dimensions
Receiver
- (1) LED
- (2) Potentiometer
Dimensions
Transmitter
- (1) LED
- (2) Potentiometer
- (1) LED
- (2) Potentiometer
Wiring Schemes (3-wire DC)
Transmitter
- (1) Test
Wiring Schemes (3-wire DC)
Connector Pin View
- (1) Test
- (1) (+)
- (2) Test
- (3) (-)
Wiring Schemes (3-wire DC)
Beam Break Test
- (1) Test
- (1) (+)
- (2) Test
- (3) (-)
Beam Break Test
- (1) Test
- (1) (+)
- (2) Test
- (3) (-)
Wiring Schemes (3-wire DC)
Receiver
- (1) Test
- (1) (+)
- (2) Test
- (3) (-)
Receiver
- (1) Test
- (1) (+)
- (2) Test
- (3) (-)
Wiring Schemes (3-wire DC)
Connector Pin View
- (1) Test
- (1) (+)
- (2) Test
- (3) (-)
- (1) (+)
- (2) Programming
- (3) (-)
- (4) Output
Connecting to a Safety Module
- 1 : Click on Download & Documents
- 2 : Click on System user guide
Curves
Infrared Detection Curve
- (1) Ø of beam
Curves
Verification of Correct Operation
- (1) Ø of beam
- (1) LED off
- (2) LED on
- (3) Red LED
- (4) Signal level
- (5) Optimum alignment
Expand all
Documents & Downloads
Document name
Date
Size
2008-01-03T00:00:00.000Z
11751
2008-01-03T00:00:00.000Z
16879
2008-01-03T00:00:00.000Z
18332
2008-01-03T00:00:00.000Z
33750
Document name
Date
Size
2026-08-20
284707
2026-04-14
109551
2026-04-14
108863
Document name
Date
Size
2001-08-01
338175
