XUBLAPCNM12

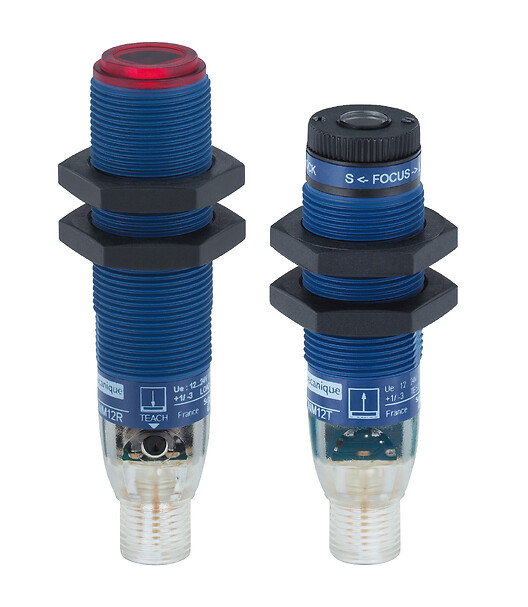

Photoelectric sensors XU, XUB, thru beam, laser, Sn 100 m, 12...24 VDC, M12

arrow

Commercialised

Download pdf datasheet Download 3d cad file Find a distributor

Expand all

Datasheet

Range of product
Telemecanique Photoelectric sensors XU
Series name
Application material handling
Electronic sensor type
Photo-electric sensor
Sensor name
XUB
Sensor design
Cylindrical M18
Detection system
Thru beam
Material
Plastic
Type of output signal
Discrete
Supply circuit type
DC
Wiring technique
3-wire
Discrete output type
PNP
Discrete output function
1 NO or 1 NC programmable
Electrical connection
1 male connector M12
Emission
Red laser class 1 670 nm conforming to IEC 825-1
Enclosure material
PBT
Lens material
PMMA
Output type
Solid state
Status LED
-
[Us] rated supply voltage
12...24 V DC with reverse polarity protection
Switching capacity in mA
<= 100 mA (overload and short-circuit protection)
Voltage drop
<1.5 V (closed state)
Current consumption
25 mA no-load
Maximum power consumption in W
-
Delay first up
80 MILLISECOND
Delay response
0.4 MILLISECOND
Setting-up
With sensitivity adjustment
Delay recovery
0.4 MILLISECOND
Kit composition

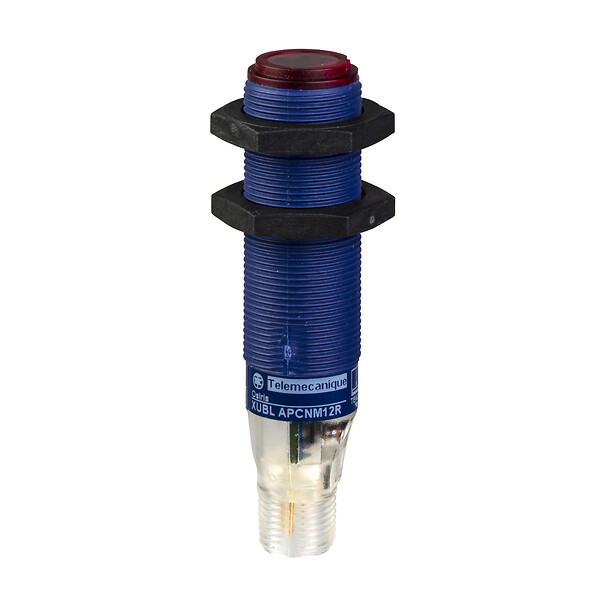

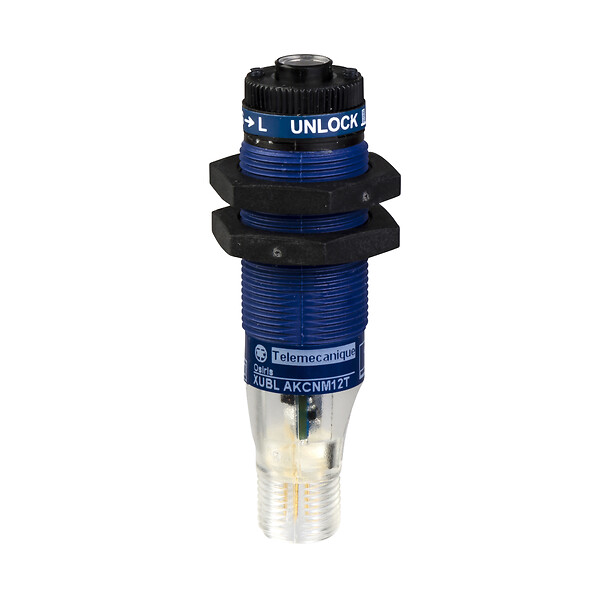

Transmitter + receiver XUBLAKCNM12T + XUBLAPCNM12R
Vibration resistance
7 gn, amplitude = +/- 0.75 mm (f = 10-55 Hz) conforming to IEC 60068-2-6
Shock resistance
30 gn (duration = 11 ms) conforming to IEC 60068-2-27
IP degree of protection
IP67 conforming to IEC 60529 (double insulation)
Unit type of package 1
PCE
Number of units in package 1
1
Unit type of package 2
S02
Number of units in package 2
35
Package 2 height
15 CENTIMETER
Package 2 width
30 CENTIMETER
Package 2 length
40 CENTIMETER
Package 2 weight
2.509 KILOGRAM
Indivisible sale quantity
1
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Expand all

Technical Drawings

Dimensions

epds

Dimensions

epds

Mounting

Adjustment

epds
  • (1) Adjust the focusing point of the laser beam by rotating the serrated sleeve
  • (2) Located on the face of the sensor. Re-tighten fixing screws

Wiring Schemes

M12 Connector

epds
  • 1 : (+)
  • 2 : Beam break input
  • 3 : (-)
  • 4 : OUT/Output

Wiring Schemes

PNP

epds
  • 1 : (+)
  • 2 : Beam break input
  • 3 : (-)
  • 4 : OUT/Output

Wiring Schemes

Transmitter

epds
  • 1 : (+)
  • 2 : Beam break input
  • 3 : (-)
  • 4 : OUT/Output
  • BN : Brown
  • BU : Blue
  • Input 2/VI : Not connected: beam made, connected to (-): beam broken

Curves

Detection Curve (Set to Infinity)

epds

Curves

Excess Gain Curve

epds
  • (X) Distance (m)
  • (Y) Gain

Curves

Standard Curve

epds
  • (X) Distance (m)
  • (Y) Gain
  • (X) Distance focusing point (m)
  • (Y) Minimum size of the object to be detected (mm)

Curves

Detection Limit Curve

epds
  • (X) Distance (m)
  • (Y) Gain
  • (X) Distance focusing point (m)
  • (Y) Minimum size of the object to be detected (mm)
  • (X) Distance focusing point (m)
  • (Y) Minimum size of the object to be detected (mm)
