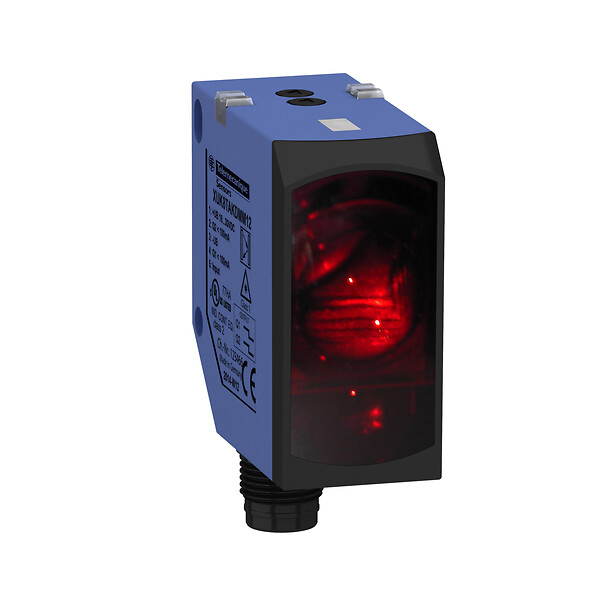

XUK8TAKDMM12
Photoelectric sensors XU, XUK, diffuse, Sn 5 m 1out IOLINK or auto PNP/NPN, 1out auto PNP/NPN
Commercialised
Expand all
Datasheet
Range of product
Telemecanique Photoelectric sensors XU
Series name
Application assembly
Application material handling
Application material handling
Electronic sensor type
Photo-electric sensor
Sensor name
XUK
Sensor design
Compact 50 x 50
Detection system
Diffuse with background suppression
Material
Plastic
Type of output signal
Discrete
Wiring technique
5-wire
Discrete output type
IOLINK
PNP or NPN
PNP or NPN
Discrete output function
1 NO or 1 NC programmable
Electrical connection
1 male connector M12, 5 pins
Product specific application
Distance measurement on object
suppression of a background
suppression of a background
Emission
Red laser diffuse with background suppression class 1 conforming to IEC 60825-1
Enclosure material
ABS/PC
Lens material
PMMA
Output type
Solid state
Status LED
1 LED (yellow) for output state, 1 LED (green/yellow) for supply on/output state
Add on input
External teach
[Us] rated supply voltage
24 V DC with reverse polarity protection
Maximum voltage drop
<1.5 V (closed state)
Switching capacity in mA
<= 100 mA (overload and short-circuit protection)
Switching frequency
500 Hz
Current consumption
<= 60 mA no-load
Delay first up
300 MILLISECOND
Delay response
2 MILLISECOND
Setting-up
Using teach button or remote teaching
Delay recovery
2 MILLISECOND
Vibration resistance
7 gn, amplitude = +/- 1.5 mm (f = 10-55 Hz) conforming to IEC 60068-2-6
Product certifications
CE
cULus
Ecolab
cULus
Ecolab
Shock resistance
30 gn (duration = 11 ms) conforming to IEC 60068-2-27
IP degree of protection
IP67 conforming to IEC 60529, IP69K conforming to IEC 60529, IP69K conforming to DIN 40050
Unit type of package 1
PCE
Number of units in package 1
1
Unit type of package 2
S01
Number of units in package 2
28
Package 2 height
15 CENTIMETER
Package 2 width
15 CENTIMETER
Package 2 length
40 CENTIMETER
Package 2 weight
1.868 KILOGRAM
Indivisible sale quantity
1
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
