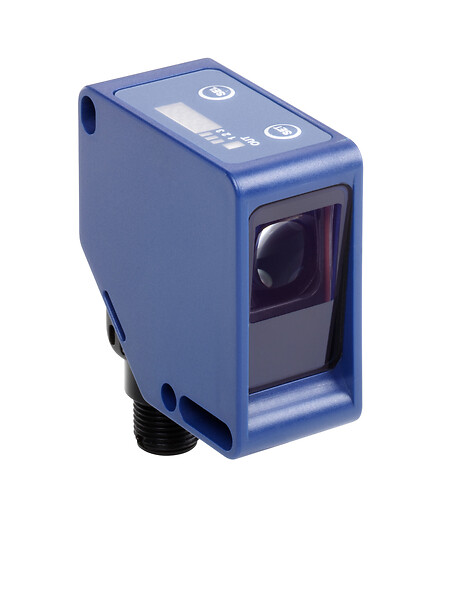

XUKC1PSMM12
Photoelectric sensors XU, XUK, diffuse, color, Sn 20 mm, 12...24 VDC, M12
End of commercialisation End of commercialization date : End of service date :

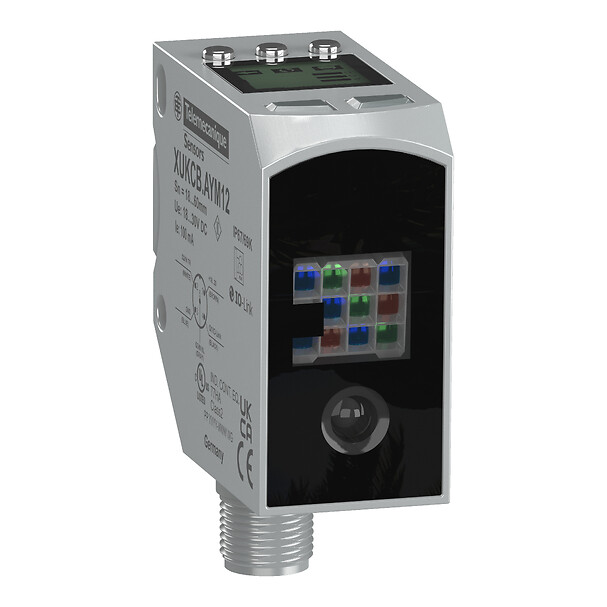

XUKC1PSMM12 is replaced by the following product:
Quantity : 1
Expand all
Datasheet
Range of product
Telemecanique Photoelectric sensors XU
Sensor name
XUK
Series name
Application packaging
Product specific application
Colour
Enclosure material
ABS
Electronic sensor type
Photo-electric sensor
Sensor design
Compact 50 x 50
Electrical connection
1 male connector M12 adjustable through 90°, 8 pins
Material
Plastic
Wiring technique
3-wire
Detection system
Diffuse
Emission
-
Discrete output function
1 NO
[Us] rated supply voltage
12...24 V DC
Type of output signal
Discrete
Supply circuit type
DC
Discrete output type
PNP
Delay response
0.335 MILLISECOND
Setting-up
Operating mode
sensitivity adjustment with teach mode
tolerance level
sensitivity adjustment with teach mode
tolerance level
Current consumption
<= 60 mA no-load
Status LED
-
Output type
Solid state
Switching capacity in mA
<= 100 mA (reverse polarity, overload and short-circuit protection)
Lens material
Glass
Type of colour processing
RGB
Time delay range
10 ms, 20 ms, 30 ms, 40 ms, 5 ms
Maximum voltage drop
<2 V (closed state)
Delay recovery
0.335 MILLISECOND
Shock resistance
30 gn (duration = 11 ms) for 6 shocks on each axis conforming to IEC 60068-2-27
IP degree of protection
IP65 conforming to IEC 60529
Vibration resistance
7 gn, amplitude = +/- 0.5 mm (f = 10-55 Hz)on the 3 axes conforming to IEC 60068-2-6
Unit type of package 1
PCE
Number of units in package 1
1
Unit type of package 2
S02
Number of units in package 2
21
Package 2 height
15 CENTIMETER
Package 2 width
15 CENTIMETER
Package 2 length
40 CENTIMETER
Package 2 weight
4.53 KILOGRAM
Indivisible sale quantity
1
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Expand all
Technical Drawings
Dimensions
Wiring Schemes
Sensor Connector Pin View
Wiring Schemes
PNP Output + Synchro Input
Curves
Detection Curve
