XUKT1KSML2
Photoelectric sensors XU, XUKT, reflex, Sn 1.5 m, 12...24 VDC, cable 2 m
End of commercialisation End of commercialization date : End of service date :
XUKT1KSML2 is replaced by the following product:
Quantity : 1
Expand all
Datasheet
Range of product
Telemecanique Photoelectric sensors XU
Sensor name
XUK
Series name
Application packaging
Product specific application
Detection of transparent object
Enclosure material
PC
Electronic sensor type
Photo-electric sensor
Sensor design
Compact 50 x 50
Electrical connection
Cable
Material
Plastic
Cable composition
2 x 0.34 mm²
Wiring technique
3-wire
Detection system
Reflex
Emission
Red reflex
Kit composition
Bracket XULZ41
sensor
sensor
Discrete output function
1 NO or 1 NC programmable
[Us] rated supply voltage
12...24 V DC with reverse polarity protection
Type of output signal
Discrete
Supply circuit type
DC
Discrete output type
PNP or NPN
Delay response
0.3 MILLISECOND
Setting-up
Sensitivity adjustment by potentiometer
Current consumption
<= 35 mA no-load
Output type
Solid state
Switching capacity in mA
<= 100 mA (overload and short-circuit protection)
Lens material
PMMA
Add on output
Without
Status LED
1 LED for output state
Time delay range
0.1...5 s monostable, on-delay or off-delay (programmable) delay
Sensing range
> 1...5 m
Maximum voltage drop
<2 V (closed state)
Delay first up
80 MILLISECOND
Delay recovery
0.3 MILLISECOND
Shock resistance
20 gn (duration = 11 ms) conforming to IEC 60068-2-27
IP degree of protection
IP65 conforming to IEC 60529, IP651 conforming to NF C 20-010
Vibration resistance
7 gn, amplitude = +/- 2 mm (f = 10-55 Hz) conforming to IEC 60068-2-6
Unit type of package 1
PCE
Number of units in package 1
1
Unit type of package 2
S02
Number of units in package 2
12
Package 2 height
15 CENTIMETER
Package 2 width
30 CENTIMETER
Package 2 length
40 CENTIMETER
Package 2 weight
3.45 KILOGRAM
Unit type of package 3
P06
Number of units in package 3
192
Package 3 height
75 CENTIMETER
Package 3 width
40 CENTIMETER
Package 3 length
80 CENTIMETER
Package 3 weight
73.768 KILOGRAM
Indivisible sale quantity
1
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Expand all
Technical Drawings
Dimensions
Dimensions

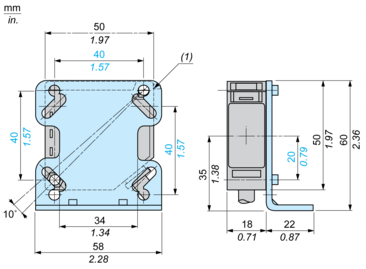

Bracket Fixing
Wiring Schemes
Connector Scheme
Wiring Schemes
NC Programmed
NC Programmed
Wiring Schemes
NO Programmed
NO Programmed
Wiring Schemes
Alarm Output
Alarm Output
Expand all
Documents & Downloads
Document name
Date
Size
2024-02-07
36769641
2024-02-07
36119819
Document name
Date
Size
2025-05-16
293144
Document name
Date
Size
1999-05-01
260058
Expand all
Related products & accessories

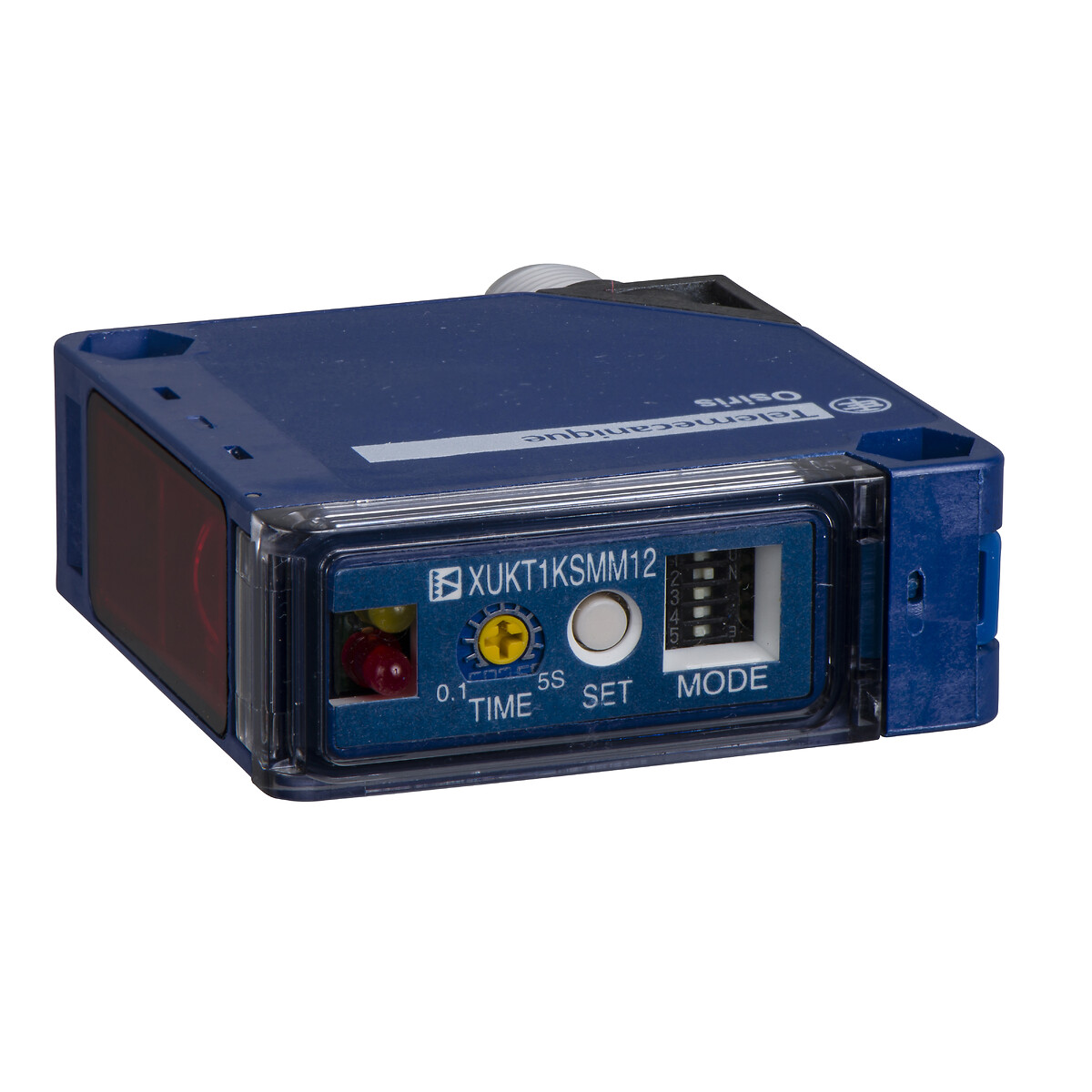

XUKT1KSMM12
