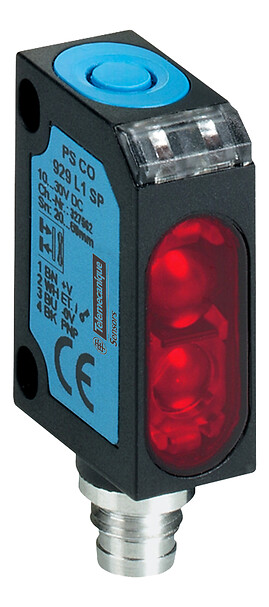

Photoelectric sensor XUY, 929, polarised, laser, Sn 1 m, 12...24 VDC, M8, PNP

END OF COMMERCIALISATION End of commercialization date : December 31st 2024 End of service date : December 31st 2024

XUYBCO929LSP is replaced by the following product:


Quantity :  1

Expand all

Datasheet

Range of product
Telemecanique Photoelectric sensors XU
Series name
Application assembly
Sensor name
XUY
Electronic sensor type
Photo-electric sensor
Sensor design
Miniature
Product specific application
Monitoring of small parts on production machine
setting up of sensors
ETIM classification
ETIM 9 - EC002717 - Retroreflective photoelectric sensor
Material
Plastic
Enclosure material
ABS
[Sn] nominal sensing distance
0.1-1 m need reflector XUY1111
Wiring technique
3-wire
Detection system
Polarised reflex
Indivisible sale quantity
1
Sensing range
> 0.3...1 m
Electrical connection
1 male connector M8, 4 pins
Supply voltage limits
10-30 V DC
[Us] rated supply voltage
12...24 V DC with reverse polarity protection
Supply circuit type
DC
Switching capacity in mA
100 mA (overload and short-circuit protection)
Voltage drop
<2.4 V (closed state)
Current consumption
< 25 mA no-load
Emission
Red LED, pulsed - class 2 conforming to IEC 825-1
Setting-up
Using teach button or remote teaching
Pulse frequency
5 kHz
Status LED
Supply on/dirty: 1 LED (green), output state: 1 LED (yellow)
Output type
Solid state
Type of output signal
Discrete
Discrete output type
PNP
Discrete output function
1 NO or 1 NC programmable
Spot diameter
<= 0.7 mm
Delay response
3 µs
Product weight
0.056 kg
IP degree of protection
IP67 conforming to IEC 60529
Ambient air temperature for storage
-20…80 °C
Shock resistance
30 gn (duration = 11 ms) conforming to IEC 60068-2-27
Vibration resistance
7 gn, amplitude = +/- 1.5 mm (f = 10-55 Hz) conforming to IEC 60068-2-6
Immunity to ambient light
5000 lux
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Warranty
18 months
Country of origin
DE (Germany)
Unit type of package 1
PCE
Number of units in package 1
1
New Package 1 GTIN-13
3666916088104
Package 1 height
3.3 cm
Package 1 width
6.1 cm
Package 1 length
9.6 cm
Package 1 weight
19 g
Unit type of package 2
S01
Number of units in package 2
10
New Package 2 GTIN 14
13666916088101
Package 2 height
15 cm
Package 2 width
15 cm
Package 2 length
40 cm
Package 2 weight
415 g
New Package 3 GTIN 14
23666916088108

Expand all

Technical Drawings

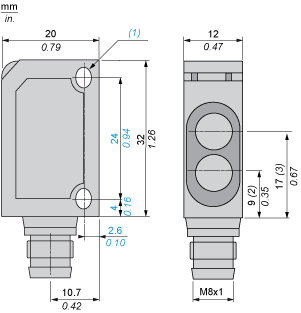

Dimensions

epds
  • (1) 2 elongated holes Ø 3.2 x 4.2
  • (2) Transmitter optical axis
  • (3) Receiver optical axis

Wiring Schemes

epds
  • 1 : Brown
  • 2 : White
  • 3 : Blue
  • 4 : Black
epds
  • 1 : Brown
  • 2 : White
  • 3 : Blue
  • 4 : Black
  • (+) BN : Brown
  • WH : White
  • (-) BU : Blue
  • (Output) BK : Black
  • (1) Connected to +: external teaching, connected to –: locking of functions
  • (2) Output 100 mA max.
