XUZASK003
Fixing bracket, Photoelectric sensors XU, accessory for sensor, XUK, metal, for XUL substitution
Commercialized
Expand all
Datasheet
Range of product
Telemecanique Photoelectric sensors XU
Accessory / separate part category
Mounting and fixing accessory
Accessory / separate part type
Fixing bracket
Product or component type
Fixing bracket
Accessory / separate part destination
compact sensor 50 x 50 mm
Material
Metal
Product compatibility
XUK
Net weight
0.05 kg
Unit Type of Package 1
PCE
Number of Units in Package 1
1
Package 1 Height
2.700 cm
Package 1 Width
5.700 cm
Package 1 Length
10.000 cm
Package 1 Weight
115.000 g
Unit Type of Package 2
S01
Number of Units in Package 2
50
Package 2 Height
15.000 cm
Package 2 Width
15.000 cm
Package 2 Length
40.000 cm
Package 2 Weight
5.919 kg
REACh Regulation
EU RoHS Directive
Pro-active compliance (Product out of EU RoHS legal scope)
Mercury free
Yes
RoHS exemption information
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Expand all
Technical Drawings

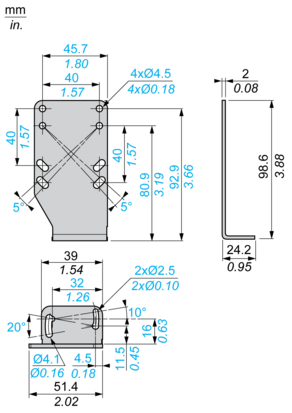

Dimensions
Expand all
Documents & Downloads
Document name
Date
Size
11/23/2023
469.3 kB
Document name
Date
Size
11/23/2023
33.8 MB
11/23/2023
33.7 MB
11/23/2023
34.2 MB
Document name
Date
Size
11/23/2023
195.3 kB
11/28/2023
195.3 kB
Document name
Date
Size
11/23/2023
35.0 MB
11/23/2023
35.0 MB
