XXS30S1VM12
Ultrasonic sensors XX, ultrasonic sensor, stainless steel, cylindrical M30, straight, 1 m, 0...10 V
COMMERCIALISED
Expand all
Datasheet
Range of product
Telemecanique Ultrasonic sensors XX
Sensor type
Ultrasonic sensor
Series name
General purpose
Sensor name
XXS
Sensor design
Cylindrical M30
Detection system
Diffuse
Material
Metal
Type of output signal
Analogue
Wiring technique
5-wire
Analogue output function
0...10 V
[Us] rated supply voltage
24 V DC with reverse polarity protection
Electrical connection
Male connector M12 5 pins
Enclosure material
Stainless steel 316L
Front material
Epoxy
resin
rubber
resin
rubber
Function available
Software configurable
with synchronisation mode
with synchronisation mode
Minimum size of detected object
Cylinder diameter 1 mm at 1 m
Delay first up
180 MILLISECOND
Current consumption
65 mA
Status LED
Output state: 1 LED (yellow), echo state: 1 LED (green)
Maximum switching capacity
>= 1 kOhm overload and short-circuit protection
Setting-up
Configurator software
teach mode
teach mode
Delay recovery
100 MILLISECOND
IP degree of protection
IP65 conforming to IEC 60529, IP67
Marking
CE
Standards
CSA C22.2 No 14
IEC 60947-5-2
UL 508
IEC 60947-5-2
UL 508
Product certifications
cULus
E2
Ecolab
RCM
E2
Ecolab
RCM
Vibration resistance
+/-1 mm conforming to IEC 60068-2-6 (f = 10-55 Hz)
Shock resistance
30 gn in all 3 axes for 11 ms conforming to IEC 60068-2-27
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
4.32 CENTIMETER
Package 1 width
9.65 CENTIMETER
Package 1 length
13.21 CENTIMETER
Package 1 weight
0.23 KILOGRAM
Unit type of package 3
S02
Number of units in package 3
24
Package 3 height
15 CENTIMETER
Package 3 width
30 CENTIMETER
Package 3 length
40 CENTIMETER
Unit type of package 2
S01
Package 3 weight
6.3422 KILOGRAM
Number of units in package 2
11
Package 2 height
15 CENTIMETER
Package 2 width
15 CENTIMETER
Package 2 length
40 CENTIMETER
Package 2 weight
2.9798 KILOGRAM
Indivisible sale quantity
1
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Expand all
Technical Drawings
Dimensions
Connections
Connector Wiring
- (1) : Synchronization
- (2) : External setting pushbutton or XXZPB100 remote teach pushbutton.
Connections
Wiring Scheme. Analog Output
- (1) : Synchronization
- (2) : External setting pushbutton or XXZPB100 remote teach pushbutton.
- (1) : Synchronization
- 0-10 V: 1 kΩ…∞
Connections
Wiring for the Synchronization Function (Side by Side Application)
- (1) : Synchronization
- (2) : External setting pushbutton or XXZPB100 remote teach pushbutton.
- (1) : Synchronization
- 0-10 V: 1 kΩ…∞
- (1) : Synchronization
- D1 : 1/8 Sn
- BN : Brown
- WH : White
- BU : Blue
- BK : Black
- GY : Grey
Performance Curves
Detection Curve with 100 x 100 mm / 3.94 x 3.94 inches Square Target
- (X) : Target distance
- (Y) : Detection limit
- (1) : Blind zone: 155 mm / 6.10 inches
- (2) : Sn max.
- (3) : 100 x 100 mm / 3.94 x 3.94 inches stainless steel plate
Performance Curves

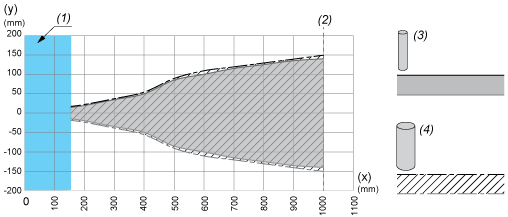

Detection Curve with Round Bar
- (X) : Target distance
- (Y) : Detection limit
- (1) : Blind zone: 155 mm / 6.10 inches
- (2) : Sn max.
- (3) : 100 x 100 mm / 3.94 x 3.94 inches stainless steel plate
- (X) : Target distance
- (Y) : Detection limit
- (1) : Blind zone: 155 mm / 6.10 inches
- (2) : Sn max.
- (3) : Ø 10 mm / 0.394 inches stainless steel cylinder
- (4) : Ø 25 mm / 0.984 inches stainless steel cylinder
