XXW54P3APL05

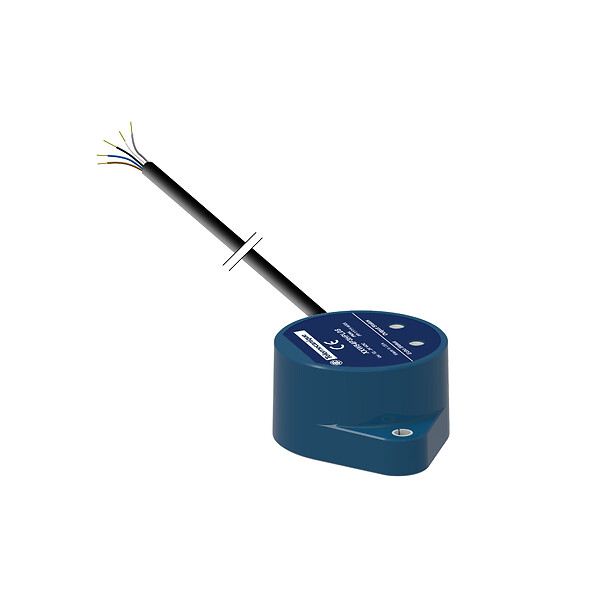

Ultrasonic sensor, plastic, Wide Beam Φ54, 3m, 4…20mA+PNP, 0.5m cable
Commercialised
Expand all
Datasheet
Range of product
Telemecanique Ultrasonic sensors XX
Sensor type
Ultrasonic sensor
Series name
Application
Sensor name
XXS
Sensor design
Ø 54 mm
Detection system
Diffuse
Material
Plastic
Type of output signal
Analogue + discrete
Discrete output function
1 NO or 1 NC programmable
Wiring technique
5-wire
Analogue output function
4...20 mA
[Us] rated supply voltage
12...24 V DC with reverse polarity protection
Discrete output type
PNP
Electrical connection
Cable 5 pins, 0.5 m cable length
Enclosure material
Valox
Front material
Ultem
Function available
Software configurable
Voltage drop
2 VOLT
Minimum size of detected object
Cylinder diameter 12 mm at 3 m
Delay first up
400 MILLISECOND
Current consumption
30 mA
Status LED
Output state: 1 LED (yellow), echo state and power ON: 1 LED (green/white)
Maximum switching capacity
250 Ohm with 12 V DC overload and short-circuit protection, 850 Ohm with 24 V DC
Setting-up
Configurator software
Switching frequency
<= 1.6 Hz
Delay response
300 MILLISECOND
Delay recovery
300 MILLISECOND
IP degree of protection
IP65 conforming to IEC 60529, IP67 conforming to IEC 60529, IP69K conforming to DIN 40050
Marking
CE
Standards
CSA C22.2 No 14
IEC 60947-5-2
UL 508
IEC 60947-5-2
UL 508
Product certifications
cULus
E2
E2
Vibration resistance
+/-1 mm conforming to IEC 60068-2-6 (f = 10-55 Hz)
Shock resistance
30 gn in all 3 axes for 11 ms conforming to IEC 60068-2-27
Unit type of package 1
PCE
Number of units in package 1
1
Unit type of package 2
S01
Number of units in package 2
4
Package 2 height
15 CENTIMETER
Package 2 width
15 CENTIMETER
Package 2 length
40 CENTIMETER
Package 2 weight
799 KILOGRAM
Indivisible sale quantity
1
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Expand all
Technical Drawings

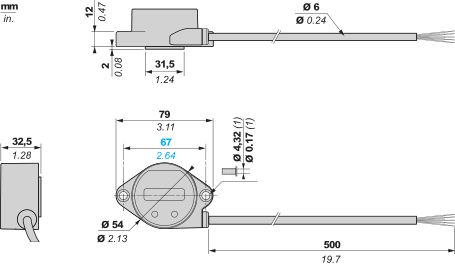

Dimensions
Dimensions
Connection and schema
Connection and schema

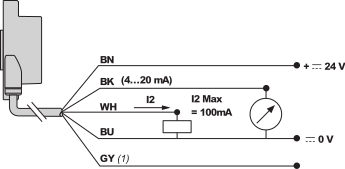

Wiring diagram
Connection and schema
Synchronization function diagram (side by side application)
Performance Curves
Performance Curves
Detection curve with 100 x 100 mm / 3.94 x 3.94 inches square target
Performance Curves
Detection curve with round bar
Mounting and Clearance
Mounting and Clearance
Flush mounting recommendations
Mounting and Clearance
Tightening torque
Mounting and Clearance
Mutual interference between two separate pieces of mobile equipment, side by side
