Datasheet

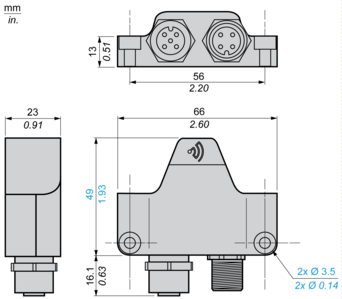

Technical Drawings
(1) 400 mA fast-blow fuse

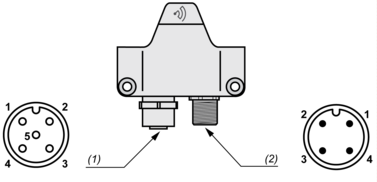

Pin 1 : 24 Vdc (output to sensor) Pin 2 : Not used Pin 3 : 0 Vdc Pin 4 : No NPN or PNP or contact input from the sensor Pin 5 : Not used |
Pin 1 : 24 Vdc Pin 2 : Not used Pin 3 : 0 Vdc Pin 4 : Not used |
(1) Socket Sensor Input
(2) Socket Power Supply (male)
(1) Typical values that may be modified by the application environment.
(1) Typical values that may be modified by the application environment.
