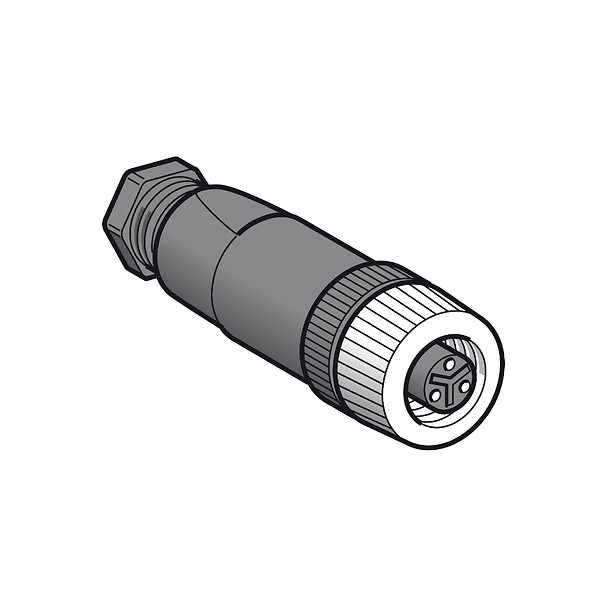

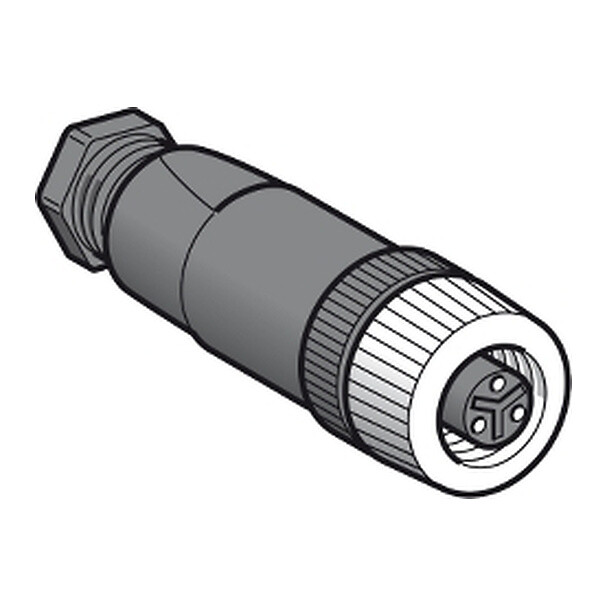

XZCC20FDM30B
Female, 1/2 20UNF, 3 pin, straight connector, cable gland Pg 7
End of comm. announced End of commercialization date : September 30th 2026 End of service date : December 31st 2026
Expand all
Datasheet
Accessory / separate part type
Connector
Accessory / separate part category
Cabling accessories
Electrical connection
Straight female connector 1/2 20 UNF, 3 pins
Collar material
Metal
Cable connection
-
IP degree of protection
IP67
[Ue] rated operational voltage
250 V AC
Insulating resistance
1000 GIGAOHM
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
2.5 CENTIMETER
Package 1 width
6 CENTIMETER
Package 1 length
9.5 CENTIMETER
Package 1 weight
0.024 KILOGRAM
Unit type of package 2
S01
Number of units in package 2
100
Package 2 height
15 CENTIMETER
Package 2 width
15 CENTIMETER
Package 2 length
40 CENTIMETER
Package 2 weight
2.567 KILOGRAM
Unit type of package 3
S02
Number of units in package 3
100
Package 3 height
15 CENTIMETER
Package 3 width
30 CENTIMETER
Package 3 length
40 CENTIMETER
Package 3 weight
2.725 KILOGRAM
Indivisible sale quantity
1
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Expand all
Technical Drawings
Dimensions
- (1) Cable gland : no. 7 plastic (Pg 7)
Connections and Schemes
Expand all
Documents & Downloads
Document name
Date
Size
2024-06-28
4263041
Document name
Date
Size
2025-05-16
544270
2025-02-28
439601
Expand all
Related products & accessories

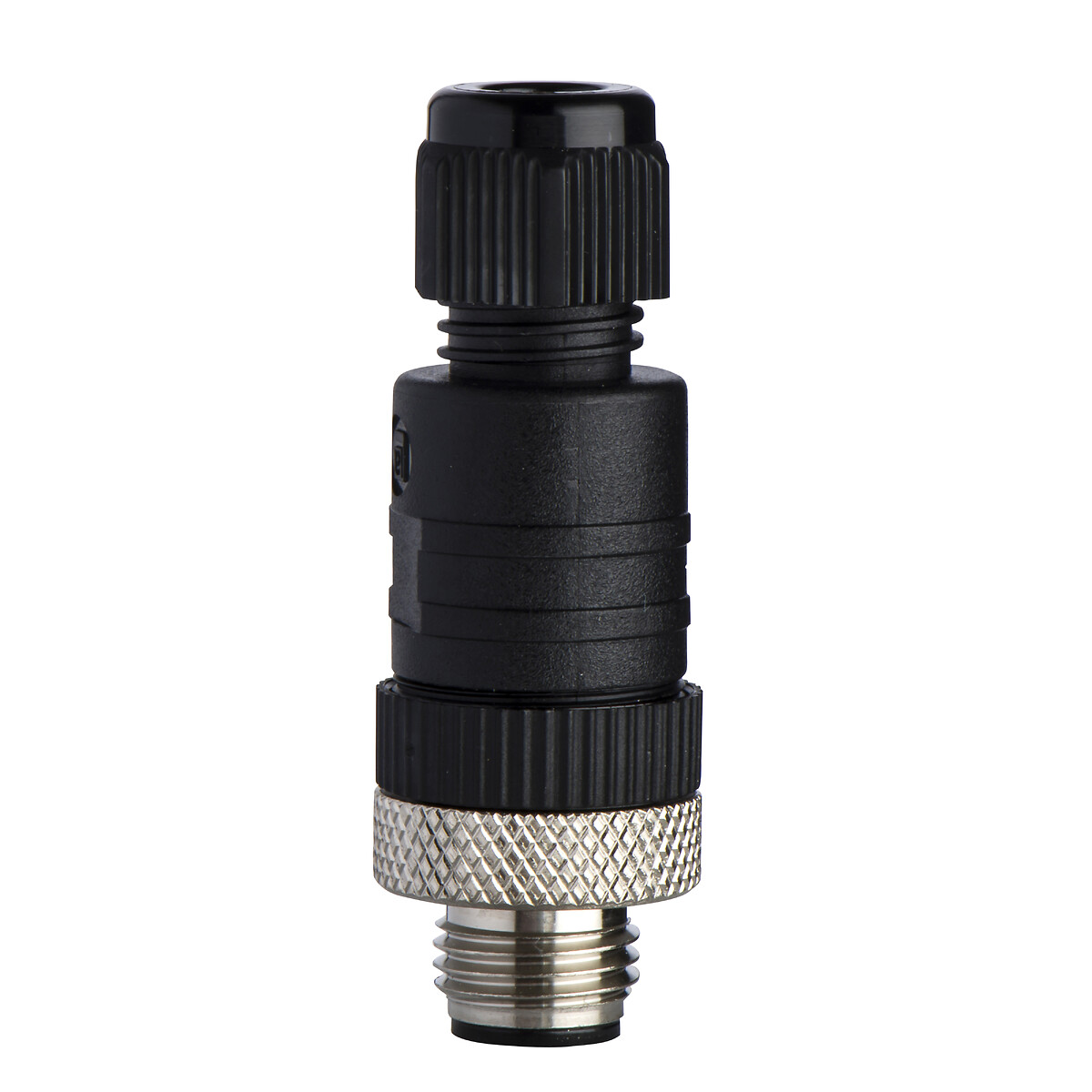

XZCC20MDM30B
