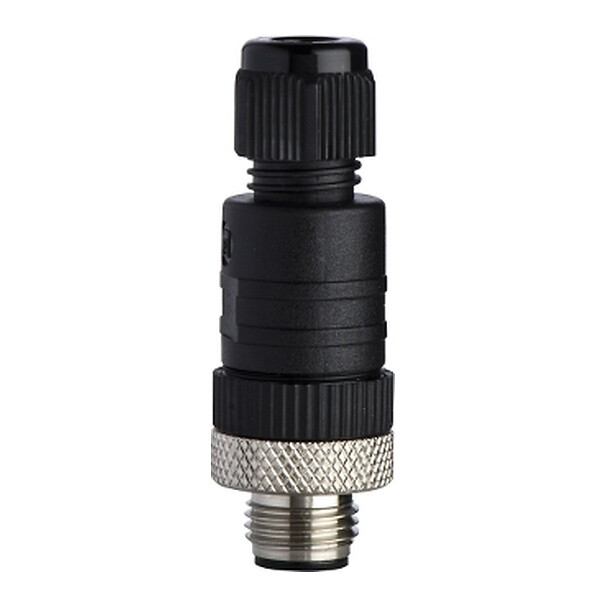

XZCC20MDM30B
Connector XZ, straight male, 1/2"20 UNF, 3-pin, Pg7 cable gland
END OF COMMERCIALISATION End of commercialization date : October 31st 2025 End of service date : October 31st 2026
Expand all
Datasheet
Accessory / separate part type
Connector
Accessory / separate part category
Cabling accessories
Electrical connection
Straight male connector 1/2 20 UNF, 3 pins
Collar material
Metal
Cable connection
-
IP degree of protection
IP67
[Ue] rated operational voltage
250 V AC
Insulating resistance
1000 GIGAOHM
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
2.2 CENTIMETER
Package 1 width
3.9 CENTIMETER
Package 1 length
9.7 CENTIMETER
Package 1 weight
0.023 KILOGRAM
Unit type of package 2
S01
Number of units in package 2
50
Package 2 height
15 CENTIMETER
Package 2 width
15 CENTIMETER
Package 2 length
40 CENTIMETER
Package 2 weight
1.32 KILOGRAM
Indivisible sale quantity
1
Expand all
Technical Drawings
Dimensions
- (1) Cable gland : no. 7 plastic (Pg 7)
Connections and Schemes
