XZCC23FCM190S

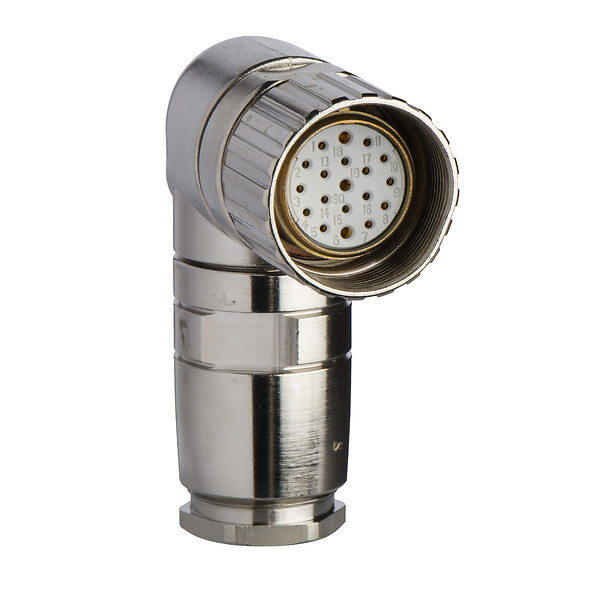

Female, M23, 19 pin, elbowed connector, cable gland Pg 13.5
Commercialised
Expand all
Datasheet
Accessory / separate part category
Cabling accessories
Accessory / separate part type
Connector
Electrical connection
Elbowed female connector M23, 19 pins
Collar material
Metal
Cable connection
-
[Ue] rated operational voltage
60 V AC, 75 V DC
Insulating resistance
10000000 GIGAOHM
IP degree of protection
IP65
Unit type of package 1
PCE
Number of units in package 1
1
Unit type of package 2
S01
Number of units in package 2
20
Package 2 height
15 CENTIMETER
Package 2 width
15 CENTIMETER
Package 2 length
40 CENTIMETER
Package 2 weight
3.498 KILOGRAM
Indivisible sale quantity
1
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Expand all
Technical Drawings
Dimensions
- (1) Cable gland: no. 13 metal (Pg 13.5)
