XZCC23FDM190S

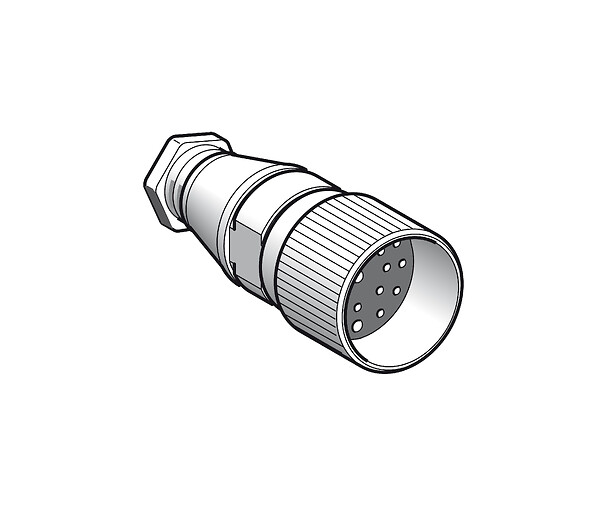

Connector XZ, straight female, M23, 19-pin, Pg13.5 cable gland
COMMERCIALISED
Expand all
Datasheet
ETIM classification
ETIM 9 - EC002635 - Circular connector for field assembly (industrial connector)
Collar material
Metal
Accessory / separate part category
Cabling accessories
Accessory / separate part type
Connector
Indivisible sale quantity
1
Electrical connection
Straight female connector M23, 19 pins
[Ue] rated operational voltage
60 V AC, 75 V DC
[In] rated current
7.5 A
Contact resistance
5000 µΩ
Insulating resistance
10000000 GΩ
Product weight
0.08 kg
IP degree of protection
IP65
Ambient air temperature for operation
-25…110 °C
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Warranty
18 months
Country of origin
FR (France)
Unit type of package 1
PCE
Number of units in package 1
1
New Package 1 GTIN-13
3666916069844
Package 1 height
2.5 cm
Package 1 width
9 cm
Package 1 length
8 cm
Package 1 weight
0.099 kg
Unit type of package 2
S01
Number of units in package 2
50
New Package 2 GTIN 14
13666916069841
Package 2 height
15 cm
Package 2 width
15 cm
Package 2 length
40 cm
Package 2 weight
5.123 kg
Unit type of package 3
P06
Number of units in package 3
320
New Package 3 GTIN 14
23666916069848
Package 3 height
77 cm
Package 3 width
60 cm
Package 3 length
80 cm
Package 3 weight
99.84 kg
Expand all
Technical Drawings
Dimensions
- (1) Cable gland: no. 13 metal (Pg 13.5)
