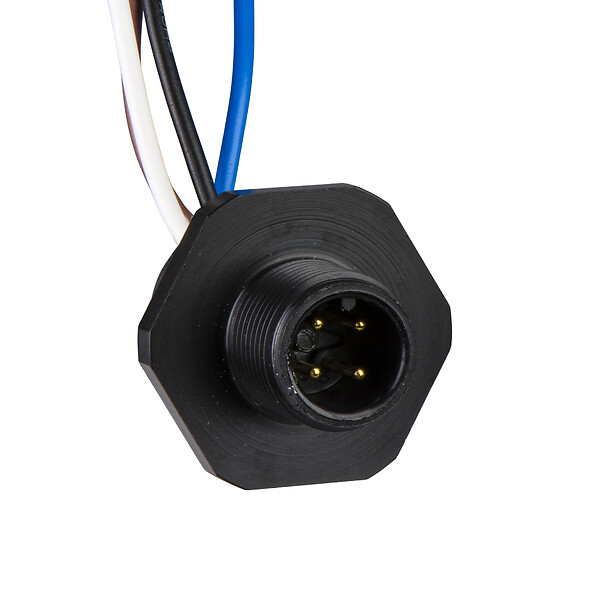

XZCE11P124M
Adaptor, plastic, tapped hole Pg 11, for male connector, M12, 4 wire
Commercialised
Expand all
Datasheet
Accessory / separate part designation
4-wire connector adaptor
Accessory / separate part category
Cabling accessories
Accessory / separate part type
Connector adaptor
Cable composition
4 x 0.34 mm²
Electrical connection
-
Insulation resistance
> 1000000000 Ohm
Resistance across terminals
5000 MILLIOHM
[Ue] rated operational voltage
250 V AC, 300 V DC
IP degree of protection
IP67
Unit type of package 1
PCE
Number of units in package 1
1
Unit type of package 2
BB1
Number of units in package 2
100
Package 2 height
30 CENTIMETER
Package 2 width
30 CENTIMETER
Package 2 length
40 CENTIMETER
Package 2 weight
83.84 KILOGRAM
Unit type of package 3
S03
Number of units in package 3
400
Package 3 height
30 CENTIMETER
Package 3 width
30 CENTIMETER
Package 3 length
40 CENTIMETER
Package 3 weight
4.029 KILOGRAM
Indivisible sale quantity
1
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Expand all
Technical Drawings
Dimensions
- (1) Pg 11 cable gland
Connections and Schemes
Connector
- BN : Brown
- BK : Black
- BU : Blue
- WH : White
