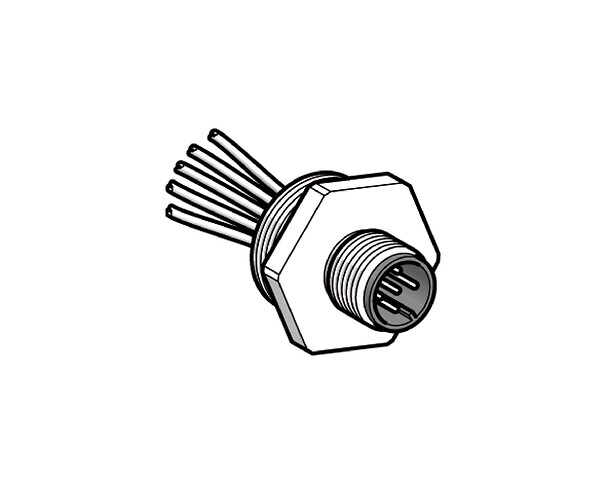

XZCE13M125M
Adaptor, metal, tapped hole Pg 13.5, for male connector, M12, 5 wire
Commercialised
Expand all
Datasheet
Accessory / separate part designation
5-wire connector adaptor
Accessory / separate part category
Cabling accessories
Accessory / separate part type
Connector adaptor
Cable composition
4 x 0.34 mm² + 1 x 0.5 mm²
Electrical connection
-
Insulation resistance
> 1000000000 Ohm
Resistance across terminals
5000 MILLIOHM
[Ue] rated operational voltage
30 V AC, 36 V DC
IP degree of protection
IP67
Unit type of package 1
PCE
Number of units in package 1
1
Unit type of package 2
S02
Number of units in package 2
100
Package 2 height
13.208 CENTIMETER
Package 2 width
25 CENTIMETER
Package 2 length
28 CENTIMETER
Package 2 weight
4.205 KILOGRAM
Indivisible sale quantity
1
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Expand all
Technical Drawings
Dimensions
- (1) Pg 13.5 cable gland
Connections and Schemes
- BN : Brown
- BK : Black
- BU : Blue
- Y/G : Yellow / Green
- WH : White
Expand all
Documents & Downloads
Document name
Date
Size
2024-06-28
4263041
Document name
Date
Size
2025-05-16
544270
2025-02-28
439601
Expand all
Related products & accessories
XZCE03P124M
Adaptor, plastic, tapped hole M20, for male connector, M12, 4 wire
XZCE11P124M
Adaptor, plastic, tapped hole Pg 11, for male connector, M12, 4 wire

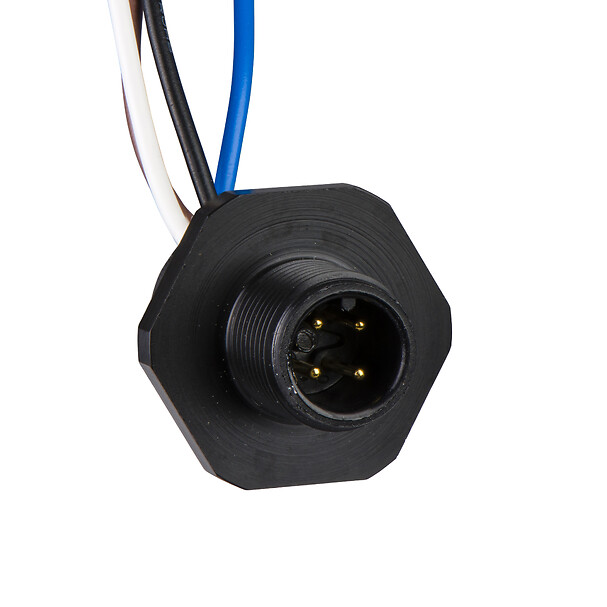

XZCE13P124M
