ZCD29M12

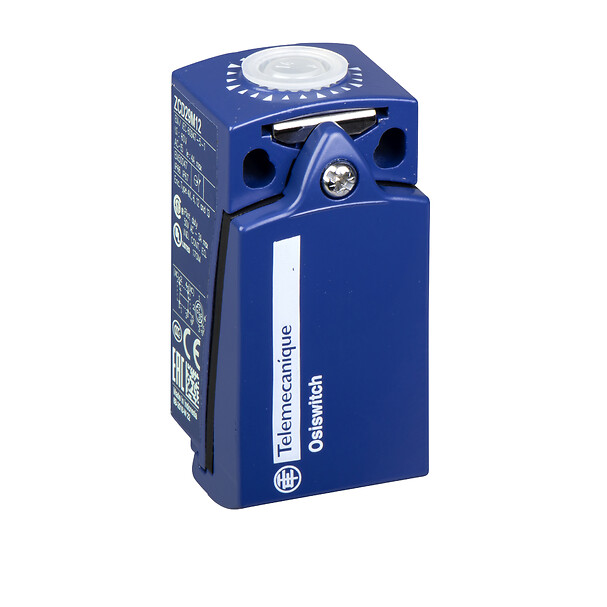

Limit switch body, Limit switches XC Standard, ZCD, compact, 2NC, snap action, M12 5P
Commercialised
Expand all
Datasheet
Range of product
Telemecanique Limit switches XC Standard
Series name
Standard compact
Product or component type
Limit switch body
Device short name
ZCD
Design
Compact
Body type
Fixed
Body material
Zamak
Contacts type and composition
2 NC
Contact operation
Snap action
snap action, simultaneous
snap action, simultaneous
Electrical connection
Male connector M12, 5 pins
Contacts insulation form
Zb
Contacts material
Silver plated contacts
Positive opening
With
Contact code designation
B300, AC-15 (Ue = 240 V), Ie = 1.5 A conforming to IEC 60947-5-1 appendix A, R300, DC-13 (Ue = 250 V), Ie = 0.1 A conforming to IEC 60947-5-1 appendix A
Resistance across terminals
25 mOhm conforming to IEC 60255-7 category 3
Product compatibility
XCKD
Unit type of package 1
PCE
Number of units in package 1
1
Unit type of package 2
PAL
Number of units in package 2
704
Package 2 height
3.4 CENTIMETER
Package 2 width
3.8 CENTIMETER
Package 2 length
10 CENTIMETER
Package 2 weight
160 KILOGRAM
Indivisible sale quantity
1
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
