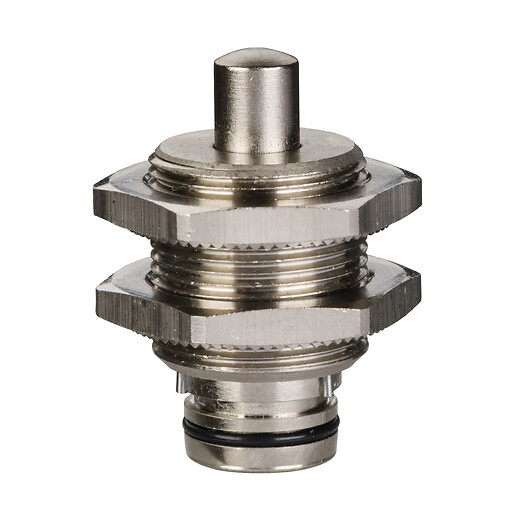

Limit switch head, Limit switches XC Standard, ZCE, M18 metal end plunger

arrow

COMMERCIALISED

Download pdf datasheet Download 3d cad file Find a distributor

Expand all

Datasheet

Range of product
Telemecanique Limit switches XC Standard
Series name
Standard format
Product or component type
Limit switch head
Device short name
ZCE
Head type
M18 plunger head
Product compatibility

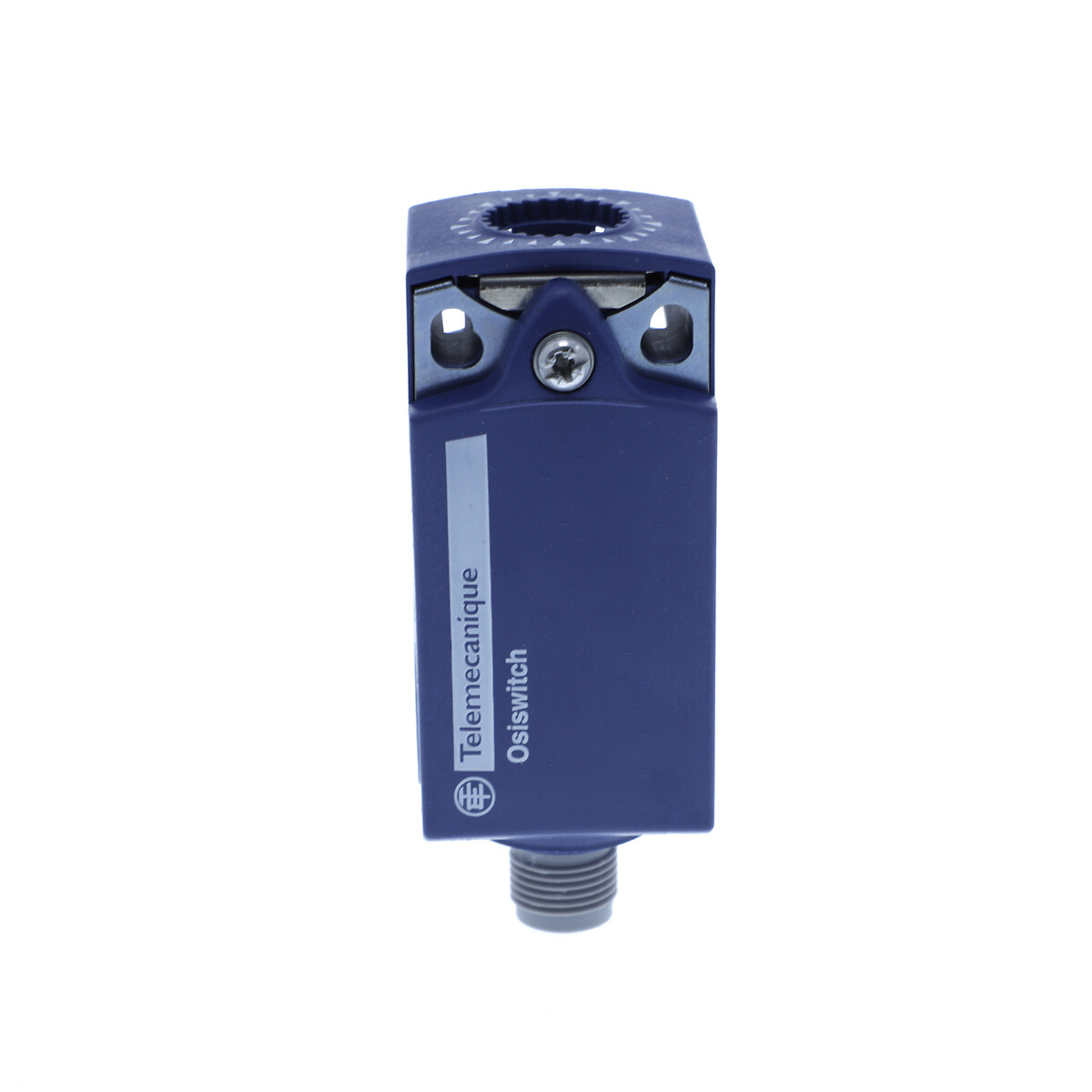

XCKD
XCKP
XCKT
XCMD
Movement of operating head
Linear
Type of operator
End plunger spring return metal
Type of approach
Vertical approach, 1 direction
Environmental characteristic
Standard environment
Unit type of package 1
PCE
Number of units in package 1
1
Indivisible sale quantity
1
