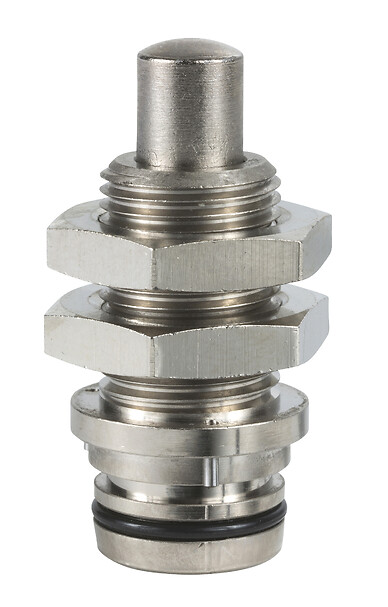

Limit switch head, Limit switches XC Standard, ZCE, M12 metal end plunger

arrow

COMMERCIALISED

Download pdf datasheet Download 3d cad file Find a distributor

Expand all

Datasheet

Range of product
TE LIMIT SWTES XC STNDRD
Series name
STANDARD FORMAT
Product or component type
LIMIT SWITCH HEAD
Device short name
ZCE
Head type
M12 PLUNGER HEAD
Product compatibility
XCKD
XCKP
XCKT
XCMD
Movement of operating head
LINEAR
Type of operator
End plunger spring return metal
Type of approach
Vertical approach, 1 direction
Environmental characteristic
STANDARD
Unit type of package 1
PCE
Number of units in package 1
1
