ZCEG1

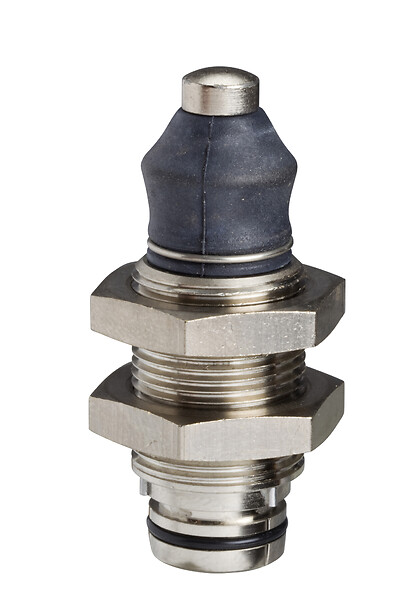

Limit switch head, Limit switches XC Standard, ZCE, M16 booted nitrile end plunger
COMMERCIALISED
Expand all
Datasheet
Range of product
TE LIMIT SWTES XC STNDRD
Series name
STANDARD FORMAT
Product or component type
LIMIT SWITCH HEAD
Device short name
ZCE
Head type
M16 PLUNGER HEAD
Product compatibility
XCKD
XCKP
XCKT
XCMD
XCKP
XCKT
XCMD
Movement of operating head
LINEAR
Type of operator
End plunger spring return metal (with nitrile boot)
Type of approach
Vertical approach, 1 direction
Environmental characteristic
STANDARD
Unit type of package 1
PCE
Number of units in package 1
1
