Technical Drawings
Switch with Metal Bracket for Fixing Horizontally
Switch with Metal Bracket for Fixing Vertically or on an Inlet Pipe
Output M12 Male Connector Wiring
Input M12 Female Connector Wiring
The 4…20 mA analog output is strictly the image of the pressure transmitter output signal.

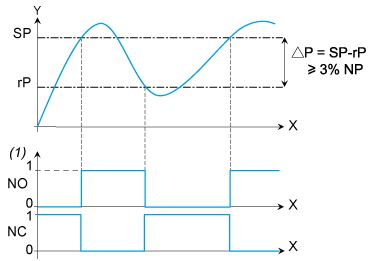

The hysteresis switching mode is typically used for the pumping applications.
