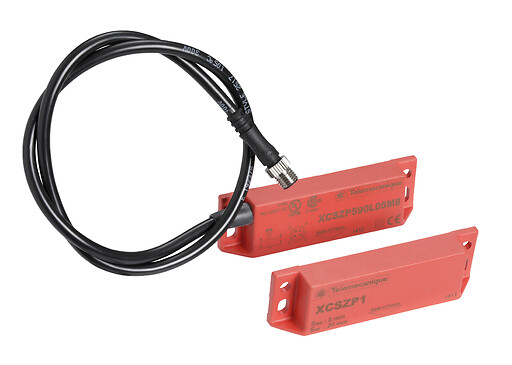

XCSDMP590L05M8

Telemecanique Safety switches XCS

Coded magnetic switch

XCSDMP

Rectangular, standard

Plastic

1 NC + 1 NO

88 x 25 x 13 mm

Staggered

M8

Connector on flying lead

3 directions

24 V DC

100 MILLIAMPERE

Rhodium

0.1...100 mA

1000 MOhm

150 Hz

Thermoplastic PBT

Can reach category 4 with the appropriate monitoring system and correctly wired conforming to ISO 13849-1, can reach PL = e with the appropriate monitoring system and correctly wired conforming to ISO 13849-1, can reach SIL 3 with the appropriate monitoring system and correctly wired conforming to IEC 61508

B10d = 50000000 value given for a life time of 20 years limited by mechanical or contact wear

TH

PVC

CSA
UL

Class II conforming to IEC 61140

CSA C22.2 No 14
IEC 60204-1
IEC 60947-5-1
ISO 12100
ISO 14119
UL 508

0.3 MILLITESLA

10 gn (f= 10-150 Hz) conforming to IEC 60068-2-6

30 gn for 11 ms conforming to IEC 60068-2-27

IP67 conforming to IEC 60529

PCE

1

S02

25

15 CENTIMETER

30 CENTIMETER

40 CENTIMETER

3.45 KILOGRAM

1
