XCSE5311

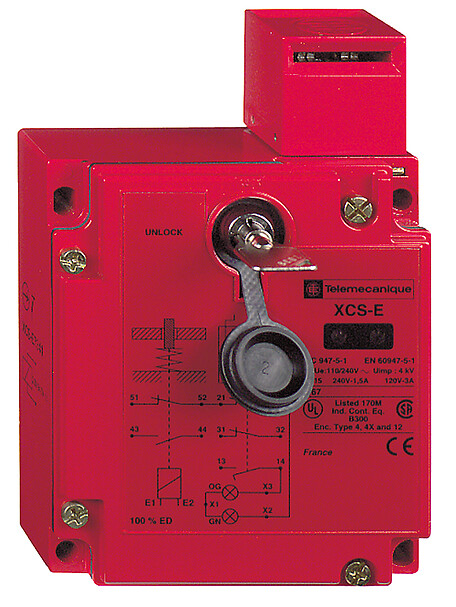

Safety switch, Telemecanique Safety switches XCS, metal XCSE, 1NC+2 NO, slow break, 2 entries tapped Pg 13, 24 V
COMMERCIALISED
Expand all
Datasheet
Range of product
Telemecanique Safety switches XCS
Product or component type
Safety switch
Component name
XCSE
Design
Rectangular
Material
Metal
Head type
Key operated turret head
Contacts type and composition
1 NC + 2 NO
Solenoid contacts type and composition
1 NC + 1 NO (slow-break, simultaneous)
Cable entry
2 entries tapped for Pg 13.5
Electromagnet interlocking
Locking on de-energisation and unlocking on energisation of solenoid
[Us] rated supply voltage
24 V - 20...10 %
Electrical connection
Terminal, clamping capacity: 1 x 0.5...2 x 1.5 mm² with or without cable end
Local signalling
2 LEDs (green or orange) for guard open/guard closed and locked
Signalling circuit voltage
24/48 V (voltage limits: 20...52 V)
Contact operation
Slow-break, break before make
Locking options description
With interlocking, locking by solenoid
Positive opening
With NC contact
Supply voltage type
AC/DC
Supply frequency
50/60 Hz
Signalling circuit type
AC/DC
Protection type
Overvoltage protection for signalling circuit
Actuator force for extraction
20 NEWTON
Operating rate
10 cyc/mn for maximum durability
Safety level
Can reach category 4 with the appropriate monitoring system and correctly wired conforming to ISO 13849-1, can reach PL = e with the appropriate monitoring system and correctly wired conforming to ISO 13849-1, can reach SIL 3 with the appropriate monitoring system and correctly wired conforming to IEC 61508
Safety reliability data
B10d = 5000000 value given for a life time of 20 years limited by mechanical or contact wear
Body material
Zamak
Head material
Zamak
Standards
CSA C22.2 No 14
EN 1088/ISO 14119
IEC 60204-1
IEC 60947-5-1
ISO 12100
UL 508
EN 1088/ISO 14119
IEC 60204-1
IEC 60947-5-1
ISO 12100
UL 508
Product certifications
CSA
UL
UL
Protective treatment
TC
Vibration resistance
5 gn (f= 10-500 Hz) conforming to IEC 60068-2-6
Shock resistance
10 gn for 11 ms conforming to IEC 60068-2-27
Electrical shock protection class
Class I conforming to IEC 61140
IP degree of protection
IP67 conforming to EN/IEC 60529 and EN/IEC 60947-5-1
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
5.4 CENTIMETER
Package 1 width
11.8 CENTIMETER
Package 1 length
16.4 CENTIMETER
Package 1 weight
1.296 KILOGRAM
Unit type of package 2
S01
Number of units in package 2
4
Package 2 height
15 CENTIMETER
Package 2 width
15 CENTIMETER
Package 2 length
40 CENTIMETER
Package 2 weight
5.458 KILOGRAM
Unit type of package 3
S02
Number of units in package 3
8
Package 3 height
15 CENTIMETER
Package 3 width
30 CENTIMETER
Indivisible sale quantity
1
Package 3 length
40 CENTIMETER
Package 3 weight
10.519 KILOGRAM
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
