XS108BLPAL5

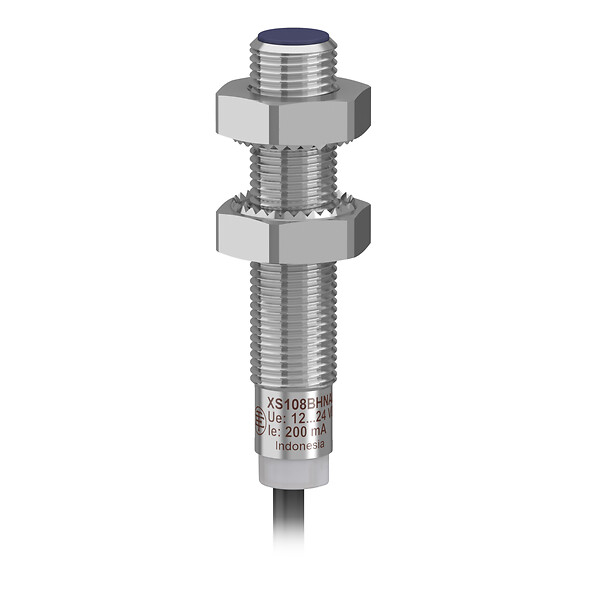

Inductive sensor XS1 M8, L42mm, brass, Sn1.5mm, 12..24VDC, cable 5m
Commercialised
Expand all
Datasheet
Range of product
Telemecanique Inductive proximity sensors XS
Series name
General purpose
Sensor type
Inductive proximity sensor
Sensor name
XS1
Sensor design
Cylindrical M8
Size
42 mm
Body type
Fixed
Type of output signal
Discrete
Wiring technique
3-wire
Enclosure material
Nickel plated brass
Discrete output function
1 NO
Discrete output type
PNP
Electrical connection
Cable
[Us] rated supply voltage
12...24 V DC with reverse polarity protection
Switching capacity in mA
<= 200 mA with overload and short-circuit protection
IP degree of protection
IP67 conforming to IEC 60529
Detector flush mounting acceptance
Flush mountable
Material
Metal
ISO thread
M8 x 1
Output circuit type
DC
Detection face
Frontal
Sensing range
> 0...2.5 mm
Front material
PPS
Differential travel
1...15 % of Sr
Wire insulation material
PVC
Cable composition
3 x 0.11 mm²
Status LED
Output state: 1 LED (yellow)
Switching frequency
<= 1000 Hz
Voltage drop
<2 V (closed)
Current consumption
<= 10 mA no-load
Delay first up
15 MILLISECOND
Delay response
5 MILLISECOND
Marking
CE
Delay recovery
0.3 MILLISECOND
Product certifications
CSA
UL
UL
Vibration resistance
25 gn amplitude = +/- 2 mm (f = 10-55 Hz) conforming to IEC 60068-2-6
Shock resistance
50 gn for 11 ms conforming to IEC 60068-2-27
Unit type of package 1
PCE
Number of units in package 1
1
Unit type of package 2
S02
Number of units in package 2
10
Package 2 height
15 CENTIMETER
Package 2 width
30 CENTIMETER
Package 2 length
40 CENTIMETER
Package 2 weight
1.41 KILOGRAM
Unit type of package 3
PAL
Number of units in package 3
160
Package 3 height
60 CENTIMETER
Package 3 width
80 CENTIMETER
Package 3 length
160 CENTIMETER
Package 3 weight
17.76 KILOGRAM
Indivisible sale quantity
1
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
