XS1M08MA230

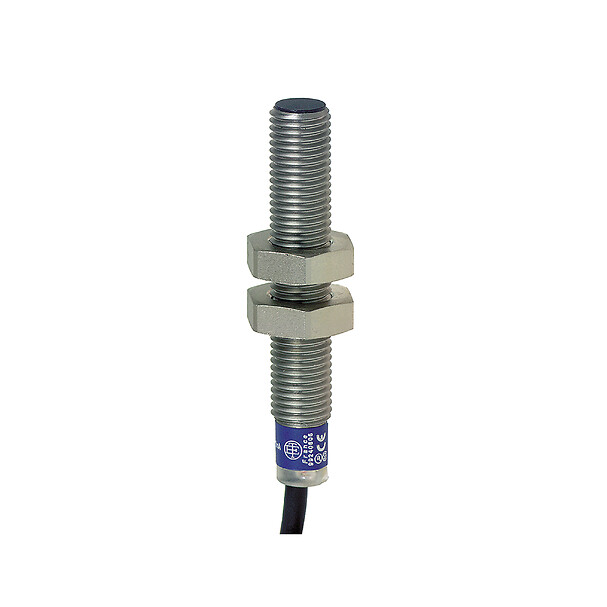

Inductive sensor, XS, M8, stainless steel, Sn 1 mm, cable 2 m, L50 mm
END OF COMMERCIALISATION
Expand all
Datasheet
Range of product
Telemecanique Inductive proximity sensors XS
Series name
General purpose
Sensor name
XS1
Sensor type
Inductive proximity sensor
Sensor design
Cylindrical M8
Product specific application
Not applicable
ETIM classification
ETIM 9 - EC002714 - Inductive proximity switch
Body type
Fixed
Material
Stainless steel
Front material
PPS
Enclosure material
Stainless steel
[Sn] nominal sensing distance
1 mm
Wiring technique
2-wire
Detector flush mounting acceptance
Flush mountable
ISO thread
M8 x 1
Product certifications
CCC
CSA
UL
CSA
UL
Marking
CE
Indivisible sale quantity
1
Sensing range
> 0...2.5 mm
Electrical connection
Cable
Cable length
2 m
Cable composition
2 x 0.11 mm²
Wire insulation material
PvR
[Us] rated supply voltage
24...210 V DC, 24...240 V AC
Switching capacity in mA
5...100 mA
Output circuit type
AC/DC
Type of output signal
Discrete
Detection face
Frontal
Discrete output function
1 NO
Switching frequency
<= 25 Hz AC, <= 3000 Hz DC
Height
8 mm
Length
50 mm
Size
50 mm
Product weight
0.035 kg
IP degree of protection
IP67
Ambient air temperature for operation
-25…80 °C
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Warranty
18 months
Country of origin
FR (France)
Unit type of package 1
PCE
Number of units in package 1
1
New Package 1 GTIN-13
3666916018774
Package 1 height
2.1 cm
Package 1 width
9.7 cm
Package 1 length
15.3 cm
Package 1 weight
0.042 kg
Unit type of package 2
S02
Number of units in package 2
22
New Package 2 GTIN 14
13666916018771
Package 2 height
15 cm
Package 2 width
30 cm
Package 2 length
40 cm
Package 2 weight
3.188 kg
Unit type of package 3
S03
Number of units in package 3
44
New Package 3 GTIN 14
23666916018778
Package 3 height
30 cm
Package 3 width
30 cm
Package 3 length
40 cm
Package 3 weight
3.188 kg
