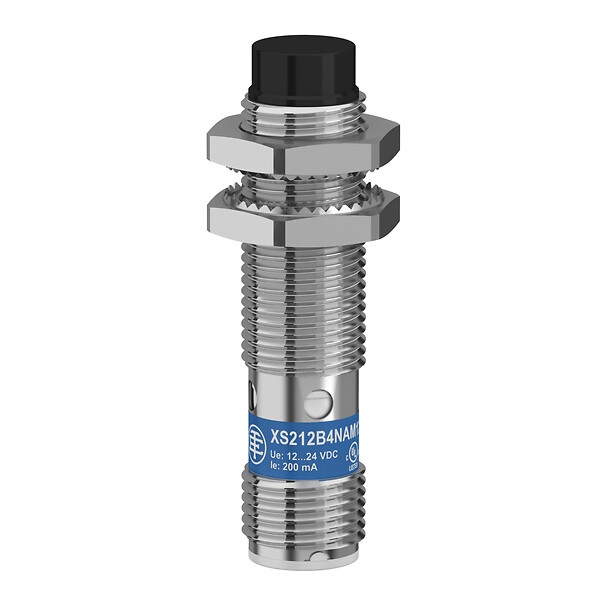

Inductive proximity sensors XS, inductive sensor XS2 M12, L51mm, brass, Sn8mm, 12...24 VDC, M12

arrow

COMMERCIALISED

Download pdf datasheet Download 3d cad file Find a distributor

Expand all

Technical Drawings

Dimensions

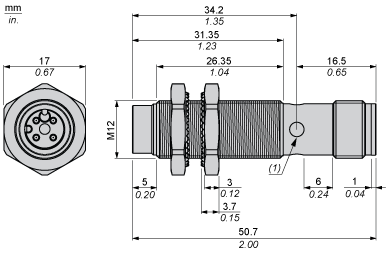

With M12 Connector

epds
  • (1) Yellow LED (Output state indication)

Mounting and Clearance

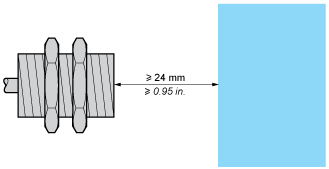

Minimum Mounting Distances

epds

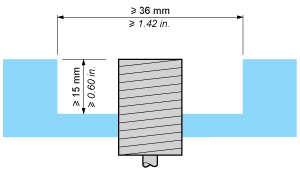

Minimum Mounting Distances

epds

Minimum Mounting Distances

epds

Minimum Mounting Distances

epds

Connection and Schema

Wiring Schemes

epds

Connection and Schema

Wiring Schemes

epds
  • BN : Brown
  • BK : Black
  • BU : Blue

Performance Curves

epds

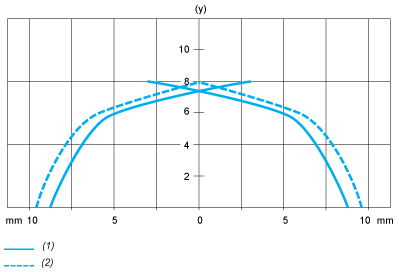

  • (y) Sensing distance in mm
  • (1) Pick-up points
  • (2) Drop-out points (object approaching from the side)
