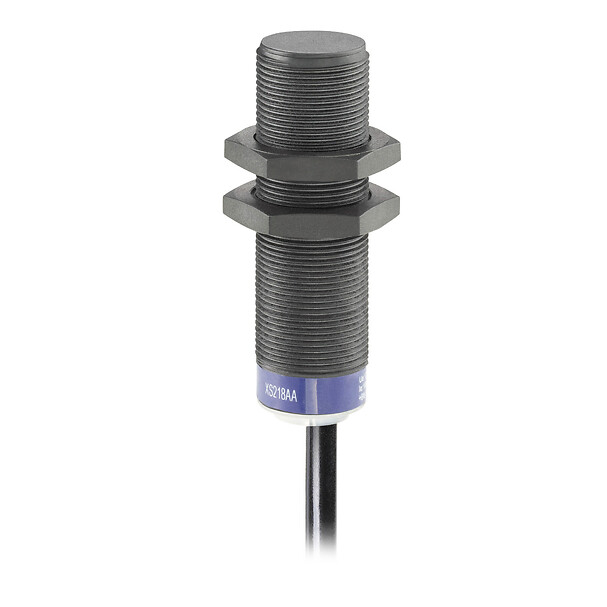

XS218AAMAL2
Inductive sensor, XS2, M18, PPS, Sn 12 mm, NO, cable 2 m, L60 mm, 24...240 VAC/DC, non-flush, 2 wires
COMMERCIALISED
Expand all
Datasheet
Range of product
Telemecanique Inductive proximity sensors XS
Series name
Application
Sensor name
XS2
Sensor type
Inductive proximity sensor
Sensor design
Cylindrical M18
Device application
Food and beverage
ETIM classification
ETIM 9 - EC002714 - Inductive proximity switch
Body type
Fixed
Material
Plastic
Front material
PPS
Enclosure material
PPS
[Sn] nominal sensing distance
12 mm
Wiring technique
2-wire
Detector flush mounting acceptance
Non flush mountable
Delay response
0.5 ms
Thread type
M18 x 1
Product certifications
CCC
CSA
UL
CSA
UL
Marking
CE
Indivisible sale quantity
1
Sensing range
8...15 mm
Electrical connection
Cable
Cable length
2 m
Cable composition
2 x 0.34 mm²
Wire insulation material
PVC
Supply voltage limits
20-264 V AC/DC
[Us] rated supply voltage
24...240 V AC 50/60 Hz, 24...240 V DC
Switching capacity in mA
5...200 mA DC, 5...300 mA AC
Voltage drop
<5.5 V (closed)
Status LED
Output state: 1 LED (yellow)
Output circuit type
AC/DC
Type of output signal
Discrete
Detection face
Frontal
Discrete output function
1 NO
Switching frequency
<= 1000 Hz DC, <= 25 Hz AC
Differential travel
1...15 % of Sr
Delay first up
30 ms
Delay recovery
0.5 ms
Residual current
0.8 mA open state
Threaded length
51 mm
Length
60 mm
Size
60 mm
Product weight
0.1 kg
IP degree of protection
IP68 double insulation conforming to IEC 60529, IP69K conforming to DIN 40050
Ambient air temperature for operation
-25…85 °C
Ambient air temperature for storage
-40…85 °C
Shock resistance
50 gn for 11 ms conforming to IEC 60068-2-27
Vibration resistance
25 gn amplitude = +/- 2 mm (f = 10-55 Hz) conforming to IEC 60068-2-6
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Warranty
18 months
Country of origin
FR (France)
Unit type of package 1
PCE
Number of units in package 1
1
New Package 1 GTIN-13
3666916015858
Package 1 height
3.4 cm
Package 1 width
12.9 cm
Package 1 length
14.9 cm
Package 1 weight
0.1 kg
Unit type of package 2
S01
Number of units in package 2
11
New Package 2 GTIN 14
13666916015855
Package 2 height
15 cm
Package 2 width
15 cm
Package 2 length
40 cm
Package 2 weight
1.049 kg
Unit type of package 3
BAG
Number of units in package 3
1
New Package 3 GTIN 14
23666916015852
Package 3 height
2 cm
Package 3 width
20 cm
Package 3 length
15 cm
Package 3 weight
0.094 kg
Expand all
Technical Drawings

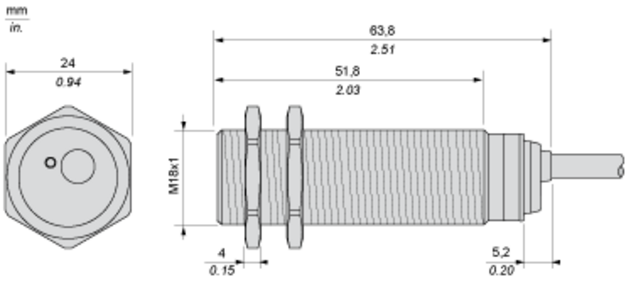

Dimensions
Minimum Mounting Distances
Mounting
Wiring Schemes
2-Wire AC or DC
